Countersink Holes In Engineering: Applications & Techniques

Countersink holes is an integral part of construction to create perfect holes. It is important for applications where precision is required. Countersink holes have diverse applications compared to other engineering holes and ranked as the most used holes in-terms of functionality. This article will explain the features of countersink hole, its applications and all the important in-depth information.

What Are Countersink Holes?

It is a conical or tapered hole used to sit flush the head of a screw, bolt, or fastener with or slightly below the surface. It creates a smooth and professional finish by hiding the screw heads.

Importance of Countersink Holes in Engineering

Countersink holes provide clean finish and keeps the fasteners head out of the way. It prevents snagging or injury and improve the strength of joints and secure fasteners

Common Applications of Countersink Holes

CNC Countersink holes are used in various applications like manufacturing, electronics, aerospace, automotive and furniture etc.

• They simplify assembly and fasteners can be inserted and tightened without requiring excessive tools.
• In aerospace parts, it reduces aerodynamic drag and provide smooth and flush surface
• The appearance of furniture improves by hidden fasteners and no material splitting
• In electronics, it create smooth surface for device casings and has minimum risk of screws poking out.
• Vehicle panels and critical parts of cars has smooth surface.
• In manufacturing and machining, parts can be created with high precision and flush finish for different applications.
• In woodworking, it ensures flat-headed screws sit flush against the workpiece.

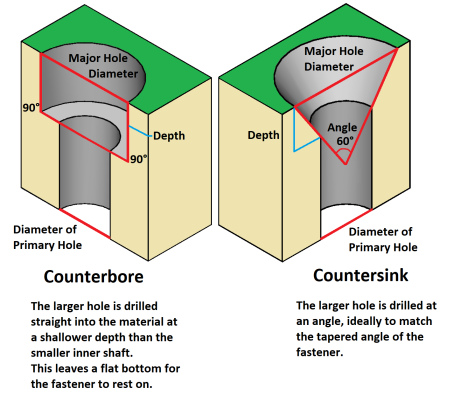

Countersink vs. Counterbore Holes: Sunk vs. Stepped

CNC Countersink holes are tapered and conical for flush-head fasteners. Counterbores are flat-bottomed and cylinderical for raised-head fastners.

Key Differences Between Countersink and Counterbore Holes

The major differences between countersinks and counterbore holes are as:

When to Use Countersink vs. Counterbore Holes

Countersink are used for smooth and flush finish with tapered fasteners. Examples are flat-head screws. Counterbore are used for flat-bottomed recess. It can accomdate large cylinderical fasteners heads such as socket screws. It ensures secured and flush fit.

Differences of Diagrams and Examples

Countersink are common examples of woodworking and sheet metal. Counterbore common examples are found in automotive and architecture applications.

Countersink vs. Chamfer Hole: Bigger vs. Smaller

Countersink and chamfers can both create angles edges. But, countersink is particularly designed for conical recess for fasteners heads. And chamfer is used for beveled edges or deburring. These can be larger or smaller depending on the requirements

Shape and Purpose: How Countersink and Chamfer Holes Differ

The key differences between countersink and chamfer holes regarding purpose, shape and applications are discussed below:

Applications Of Countersink vs. Chamfer Hole

Chamfer holes ease assembly and normally used at the edges of the holes. Countersinks allow fasteners to sit flush or below the surface.

Chamfers

• Manufacturing: chamfer are commonly used in different industries and in manufacturing to enhance quality of parts and provide ease of assembling.
• Aerospace: these holes are used in air-frame structure, engine parts and landing gears.

Countersink

• Woodworking: these are used to form recess for screw heads to sit flush with the wood surface
• Aerospace: these are used to create smooth surface of structure which are essential for aerodynamics and strength.
• Fasteners: these are essential for using flat-head screws that required to sit flush with the surface.

Other Types of Holes in Engineering

There are also other types of holes are that are important for structures in engineering

• Tapered Holes

These are wider at one end and create a conical shape. Tapered holes are used to provide better grip for screws in different industries like woodworking, or machining

• Blind Holes

It is refereed to holes that re milled, reamed or drilled to a specific depth and does not pass completely through the materials.

• Through Holes

These holes full pass through the work piece. It is also called thru-holes.

• Spotface Holes

These holes are shallow, flat-surface and cylindrical in shape. Spot-face holes are larger than and concentric holes. These provide flat mounting surface for connecting parts like washers.

• Slotted Holes: Adjustable Fit

These are elongated holes and are used in applications required flexibility in alignment or movement. For examples, shear connection or bolted connection

• Threaded Holes: For Screws and Bolts

These are also called tapped holes. A circular hole with internal threads used to fit a threaded fasteners like screws or bolts. These are made by tapping process.

How to Drill a Countersink Hole

It is not difficult to drill countersink hole design if you have knowledge of the type of holes and right tool. A step-to-step guide of drilling countersink hole design is discussed below:

Step-by-Step Process for Drilling Countersink Holes

1. Pilot hole

Before CNC countersink holes, pilot hole is drilled with the diameter of screw shaft to select the right drill bit. Then work piece is clamped to be secured and then hole is drilled perpendicular to metal surface.

2. Countersink angle selection

Ensure the countersink angle is correct. The recommendation is for metric screw is 90° angle and for standard screws is 82°. wrong countersink angle defeats the purpose of hole

3. Drill bit selection

Right drill bit selection is actually drill bit diameter. Diameter is important to secure the screw fit into the countersink hole design.

4. Drill bit insertion into drill chuck

Drill chuck is a part of drill that secures the bit in place. It prevents spinning of drill bit and provide tight collar and three-way vice to the parts. Make sure chuck is not too tight because it could be difficult to detach it after drilling

5. Drill adjustment to right drill

When countersink is drilled into metal, depth and bit type is important to sit flush the screw head within the metal. The best adjustment results are at 4mm. Correct adjustment prevents excessive countersinking gap on top of the screw head.

6. Drill the hole

Drill is pushed to countersink bit attached to pilot hole and move down to the desired depth. The exact depth is important to know to get fit the screw head and countersink bit

7. Inspection of hole

Once the process completed, thoroughly inspect the hole using bolt or screw and make sure it sits flush within the workpiece.

Tools You Need for Countersinking

The primary tools for countersinking are countersink bit and and drill. other important tools are also explained below

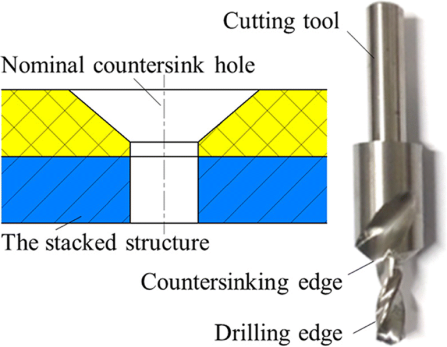

• Countersink bit

It is a conical shape tool to create tapered surface at the top of hole to sit flush the screw head. The common types of bits are fluted countersink bit, cross-hole countersink bit and single or multi fluted countersink bit.

• Drill

Drill is a power tool to hold and rotate the countersink bit. It could be manual or power tool.

• Screws

Screw type like countersink head or flat heads will determine the countersink angle.

• Measuring tools

Depth gauge to measure the correct depth or measuring tape to mark the location and size of hole

• clamps

To secure the metal during the drilling process

• Center punch

To mark the starting point

• Straight edge

To align correctly the countersink hole design.

What Are Normal Countersink Angles and Sizes?

Countersink sizes are normally identified by the dimension of head of fasteners to fit the flush or recesses fit.

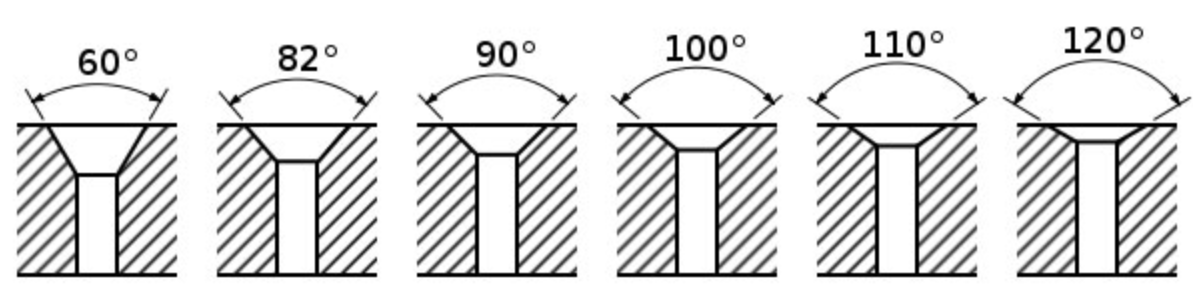

Standard Countersink Angles

All the standard countersink angles are explained below

60° Countersink for Deburring

60° countersinks can enlarge and bevel already the drilled holes

 82° and 90° for Screws and Rivets

82° are commonly used for countersunk screws according to Unified (Imperial)l Thread standard. While 90° are also for screws and rivets according to ISO (metric) standard

120° for Sheet Metal Rivets

120° is for countersink sheet metal rivets and 100° is also commonly used for aerospace applications and for fastening of soft materials.

Countersink Hole Size Charts

The size chart of 90° countersink angle is explained as an example with thread size and countersink diameter

Dimensions for Common Countersink Angles

There are a few commonly used countersink angles like 82° for imperial fasteners, 90° for metric fasteners, 100° for aircraft applications and 120° for sheet metal rivets

Dimension of angle of a countersink machining can be calculated with two options

1. Measure as a cones, select the location and include cone angle
2. Measure two lines, one on the cone surface as a cross section up the angle, the other on the top or down the side of bore. Select the angle then.

How to Calculate the Right Size for Your Application

The right selection of size can be calculated with these factors

• Fastener Size:

To select fastener size, determine the head type ( flat head, oval head) to dictate the countersink angle and depth. Consider fastener standard imperial or metric and then select material to determine the hole size and thread type.

• Countersink Angle:

Consider angle 82°, 90°,100°, or 110°,120° for specific applications and ensure the angle matches with the taper of fasteners head for proper fit.

• Material Type:

For thin material, use wide countersink angle and for harder material, use larger countersink diameter and deeper countersink.

• Hole Depth:

Countersink depth should not be more than 60% of material thickness to prevent cracking. Consider height of fasteners head, washer and recess head to determine the depth and to ensure head is below the surface.

Materials for Countersink Drill Bits

Commonly used material for countersink drill bit are high-speed steel(HSS), carbide or cobalt depending on the workpiece material and application

High-speed steel (HSS)

HSS is famous for it general-purpose conutersink holes. It offers a balance of wear resistance, hardness and cost.

Cobalt countersink bits

Cobalt integrated with HSS bit(HSS-Co or HSS-E) are used for harder materials like cast iron and stainless steel. It offer high temperature resistance and toughness

Carbide countersink bits

Carbide bits are very durable and hard. It is best for abrasive materials or hard material and used for metal.

Diamond-Coated Countersink Bits for Hard Materials

Diamond -coated bits create very accurate and precise countersink in rigid and hard structures. It is used in construction sites and for renovation

How to Choose the Right Countersink Tool

Right selection of countersink tools depends on material, depth, flute design, screw head type to match the countersink diameter and screw head size for flush fit.

Fluted Countersink Cutters

Consider flute design such as Single flute, Multi-flute and zero-flute to select the right countersink cutter. Single flute is used for general purpose applications and for deburring. Multi-flute(2,3,4,6) best for best chip removal and can be used for hard materials, metals and for fast cutting process. Zero flute used to clean edge and for deburring.

Crosshole Countersink Cutters

These are used to create crosshole like for certain type of fasteners. They help in chip removal, prevent jamming during the process, deburing and for chamfering edges.

Solid Carbide Countersink Tools

Solid carbide tools offer long tool life for cutting of abrasive or hard material like steel or tough hardwood. It enhances durability and and service-life of material.

Selecting the Best Tool for Material Type

For wood, select 82° or 90° countersink bit, for plastic, select single flute or zero flute for creating holes and for metal choose HSS or cobalt bits and for harder metal like steel or titanium choose carbide bits

Countersink Hole Design Considerations

There are some factors to consider when designing countersink machining

• Screw Head Type and Angle:

Match the countersink angle with taper of screw head. Common angles are 82° for flat-head screws and 90° for general-purpose application.

• Diameter and Hole Size:

Diameter of countersink machining must match with screw head. Rule of thumb is best to make diameter 1.5times the maximum of head diameter of screws. And the major hole size must be the same or slightly larger than the diameter of head

Other factors like countersink depth must be fully sit the screw head, avoid over-deep countersinks because it could weakened the structural integrity and component clearance to allow countersink hole has enough space to prevent collapse with surrounding.

Common Problems When Drilling Countersink Holes

Some very common issues that occur during drilling countersink holes are discussed below:

• Uneven Angle

Angle and diameter must match with the specification of screws of fasteners to fit perfectly into the hole.

• Over-Drilling

Over-drilling can weaken the metal and can result in pull through of screw head. Shallow drilling can result in screw head not being flushed with the surface.

• Chipping or Burrs Formation

Chip removal inefficiently can cause poor surface finish and can damage the workpiece as well as drill bit.

Countersink Holes in Different Materials

Countersinking in different materials are as:

Countersinking in Metals

Common metals are steel, stainless steel and aluminum used for countersinking machining

Steel

For steel, countersink drill bit diameter must be larger than the bolt size and use cross-hole cutter to debur metal. Whole for angular tip use flat bit.

Aluminum

Start with pilot hole and use chamfer bit or countersink bit to create a conical recess for screw head and get correct angle and depth for flush fit.

Stainless Steel

Carbide drill bits are used for harder steels to get durability and longevity in workpiece. Use slow speed and steady pressure to prevent overheating. Apply lubrication for hard material

Countersinking in Plastics and Composites

Plastic and composites are commonly used for countersinking but it is important to select right bit, cutting speed, cutting fluid, depth to prevent damage and cracks specially in these materials

Countersinking in Wood

Countersinking in wood is a very common practice. It used to secure flat-head screws to sit flush with the surface.

Engineering Applications of Countersink Holes

CNC Countersink holes are a very commonly used in engineering and industries due to variety of features.

Countersink Holes in Aerospace and Automotive Industries

These are crucial in aerospace and automotive to create flush surface, improve aesthetics and most importantly it improves structural integrity by distributing stress and reducing aerodynamic drags.

Countersink Holes for Aesthetic and Functional Purposes

These conical shaped holes create slightly recessed surface for screws to sit. It also enhances aesthetics and functionality by preventing protruding heads and potential risks and hazards

Load Distribution and Strengthening with Countersink Holes

These holes are used to improve strength of material by distributing load and spreading stress of screw’s head over a larger areas. It also reduces stress concentration and risk of material damage in brittle materials like ceramics and plastics

Conclusion:

Countersinking is a machining process. It creates conical holes over the per-drilled hole to allow head of screws to sit flush with or below the surface. It is very commonly used in aerospace and automotive applications to improve structural integrity and load distribution.

FAQ

What Is the Minimum Thickness for Countersinking a Hole?

The minimum thickness for countersinking depends on the countersink depth. But a general rule of thumb applied to ensure thickness is greater than the depth

Can I Countersink with a Regular Drill Bit?

No, it is not recommended, as it is less efficient and can damage the work piece.

How Do I Correctly Interpret a Countersink Symbol on a Drawing?

Symbol indicates the a hole feature is required and countersink allows fasteners to sit slightly below the surface

Can Countersink Holes Be Used for Decorative Purposes?

Yes, it is very commonly used for decorative purpose in woodworking, furniture and cabinetry to have a cleaned and professional look.
