Toughness vs. Resilience Material: Comprehensive Guide

Solid material can absorb energy during deformation. The degree of deformation could be different which varies the energy requirement in material. This energy is measured by two different properties in material, known as resilience and toughness. Both are related with absorb energy bit different in way of deformation. This article will explore all the important aspects regarding toughness and resilience.

What is Toughness in Materials?

Toughness is a material’s property. It explains the material strength upon impact loading without fracture. If a material can withstand load and show strain without failure, then it is a tough material.

What is the Best Definition of Toughness?

Toughness defines the amount of absorb energy by an object before the fracture. Toughness is related to elastic and plastic deformation.

What is Resilience in Materials?

Resilience is the amount of energy absorbed in a material. It is measured when elastic deformation occurs.

What is the Difference Between Toughness and Resilience?

Toughness is related to elastic and plastic deformation. While resilience is only related to elasticity and ductility or with only elastic deformation.

How Toughness and Resilience Differ in Mechanical Properties

Toughness is the ability to survive shock loading before failure. The tougher material has high ductility and high hardness. It must be considered in material which undergo impact and dynamic loading like cutting tools and hammer.

Resistance is energy absorption and shock resistance upon impact loading. This feature is important for spring materials. This must be considered when material is constantly undergoing shock loading.

Toughness vs. Resilience in the Context of Stress and Strain

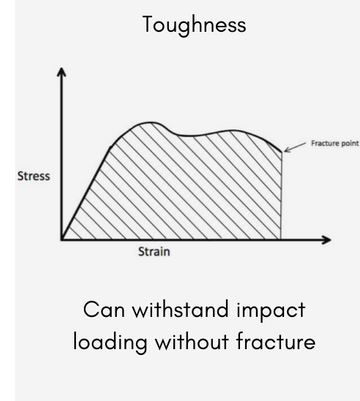

Modulus of toughness is defined by the considering entire area below engineering stress-strain graph. This is because it is associated with elastic and plastic deformation.

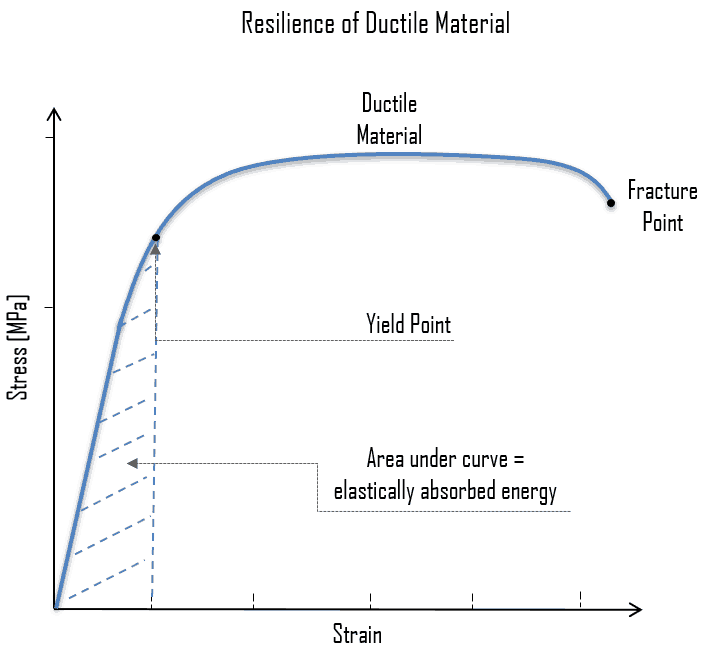

Modulus of resilience is the area under  stress-strain graph to the elastic limit. This is because it is associated with elastic deformation.

Comparative Analysis of Tough vs. Resilient Materials in Industry

Toughness is considered in metal for forming methods. These are like sheet metal forming, forging, bending, drilling etc.

Resilience is considered when elasticity and ductility are concerned in an object These materials mostly are spring.

Modulus of Toughness vs modulus of resilience

The modulus defines the toughness characteristics. It is the energy per unit volume needed to break the object when tensile load is applied.

Modulus is the resilience characteristic in a material. It is the energy per unit volume needed to deform the object elastically when tensile load is applied.

Toughness in Strength of Materials

Toughness is affected by many factors in a material. These are amount of load, type of load like tensile or impact, temperature, defects and impurities.

Fracture Toughness: Resistance to Crack Propagation

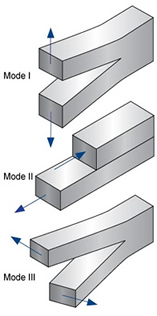

Fracture toughness indicates the amount of load needed to propagate a pre-existing crack. This feature is important because occurrence of flaw cannot be completely avoided, and some numbers of defects are present in any kind of material. There are three modes of fracture depending on the direction of load.

Toughness vs. Hardness: A Comparative Overview

Hardness are toughness are different properties but are interlinked. Toughness is the ability to absorb energy before failure. Hardness is the resistance to deformation, scratching or indentation.

Formula for Calculating Toughness

The mathematical expression of toughness is

U = E/V,

Where, U is the toughness, E is the energy and V is the volume. It is also related to the stress-strain curve. This is the area under curve stating from 0 point of deformation to rupture.

Resilience in Strength of Materials

The resilience in mechanical strength is determined by the energy absorbed by a material when load applied and still regain its original shape.

Modulus of Resilience: How It’s Calculated

It is calculated by the yield strength and modulus of elasticity. The square of yield strength is divided by two times of modulus of elasticity value.

What is Proof Resilience in Strength of Materials

Proof resilience is the maximum absorbed energy to the elastic limit by any material. in this range, material is able to retain its original shape

Proof Resilience Formula

It is calculated by the region under the stress-strain graph. The square of yield strength is divided by two times of modulus of elasticity value.

Proof resilience and modulus of resilience

Proof resilience is the maximum absorbed energy by a material to the elastic limit. It does not involve plastic deformation.

Modulus of resilience is the maximum absorb energy per unit volume of material without permanent deformation.

Testing Methods for Toughness and Resilience in Materials

There are testing methods to measure toughness and resilience in materials.

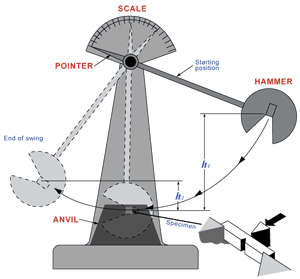

Charpy Impact Test for Measuring Toughness

Specimen is held in a pendulum-testing machine to measure toughness by Charpy or Izod test. Specimen is broken by an overload event through impact by pendulum. Then the record is measured how far the pendulum swings back up after fracturing the sample.

Tensile Tests and Modulus of Resilience: How They're Conducted

Modulus of resilience is tested by A tensile test in a Universal tensile testing machine. In this the load is applied to material to measure the material’s response to tensile stress. The stress-strain curve area is used to determine the Modulus of resilience.

Advanced Testing Methods for Assessing Material Toughness

There are a few techniques that are used in advanced material testing methods.

Measuring Toughness Under Extreme Conditions

Materials are tested for extreme conditions such as for space consideration to maintain the toughness and mechanical strength under extreme conditions. Same tests as tensile test and Charpy test are conducted but the conditions are different like very low temperatures or cryogenic conditions.

Testing for Resilience in Polymers and Metals

Bayshore Resilience test is used to measure resilience in polymers. In this test, a ball os dropped from a height over a sample. The rebound height is measured to determine the resilience in material. This shows the hysteric energy loss.

Applications of Tough and Resilient Materials

Common application of tougher materials is cutting tools in production line and in manufacturing industries. These are used in jigs, fixtures, drilling and in lathe.

Resilience materials have high mechanical strength, ductility and low elastic modulus, these materials are employed in spring applications.

Resilience and Toughness in Stress-Strain Curve

The stress-strain curve is used to determine the toughness and resilience in the material.

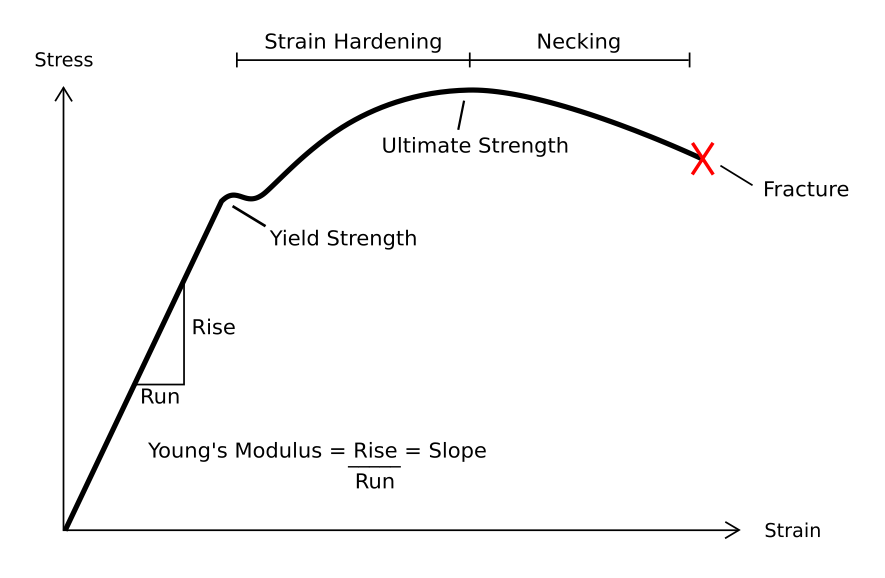

Yield Point, Ultimate Strength

A yield point is the point where the material starts deforming plastically after the elastic limit.

The ultimate strength is the maximum load a material can tolerate without being fractured or while stretching.

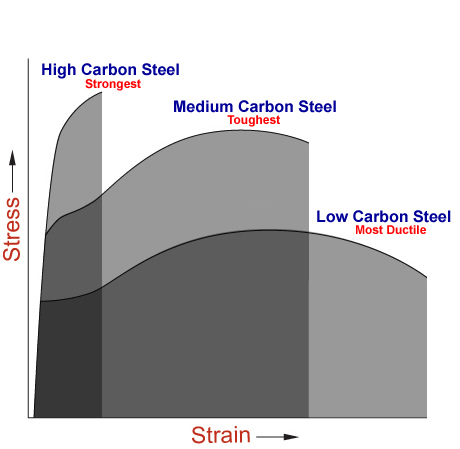

Using the Curve to Calculate Toughness

For tougher materials, high stress and strain must be tolerated. Tough materials have a balance of mechanical strength and ductility. Mechanical strength shows the amount of force a material can withstand, and toughness indicates the maximum absorbed energy before failure under the stress-strain curve.

Finding Resilience on the Stress-Strain Curve: Practical Tips

The area before the yield point in a stress-strain curve is resilience. It is obtained by square of yield strength is divided by two times of modulus of elasticity value.

When to Choose Toughness or Resilience

Toughness must be considered when material is undergone shocking and dynamic loads. For example, in car designing, structural steels are chosen for chassis because it can absorb impact while crashing. Resilience must be considered when a material is undergone to shock loading.
