Climb Milling vs Conventional Which is Best

Climb milling and conventional milling are both machining and cutting methods. In the beginning, conventional milling was a common machining method, which means it's an old method. Climb milling is, you can say, an advanced form of milling machining. After reading this article, you will completely understand the difference between these methods, their invention, how they are used, etc.

What is Climb Milling?

A type of machining approach is applied through CNC machines. You can assume through its name that the tooth of the cutting tool climbs over the material's surface to cut the material and convert it into the desired shape. This is an easy process because of the support of a CNC machine. The cutting tool operates in the direction of the workpiece movement. The following figure will help you to understand the work more precisely.

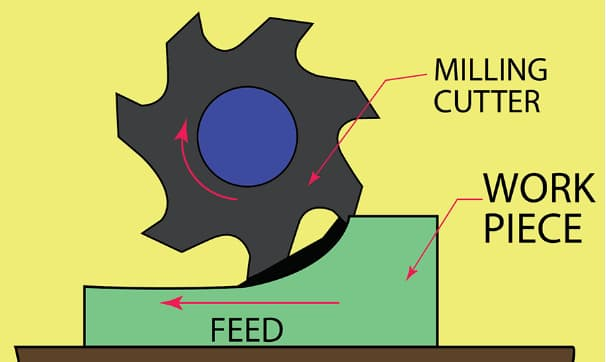

Direction of Climb Milling

As the figure in the introductory section shows, the milling cutter operates in the feed direction, which means in the direction of the workpiece. The cutter remains in contact with the workpiece.

Climb Milling in CNC Machines

People who are connected to CNC machines directly or indirectly know that a CNC machine is equipped with many features. These features are very advanced, such as an automatic tool-changing mechanism, making it feasible to perform climb milling easily. Climb milling, due to CNC machining, provides highly precise and accurate tools that are further used in critical industries such as aerospace, automotive, and medical fields.

What is Conventional Milling?

Climb milling is just the advanced version of this milling method. It is the oldest milling method in which manual tools were used to make intricate designs, etc. It is also called an up-milling process because the cutting tool operates in the opposite direction of the workpiece movement.

How Conventional Milling Works

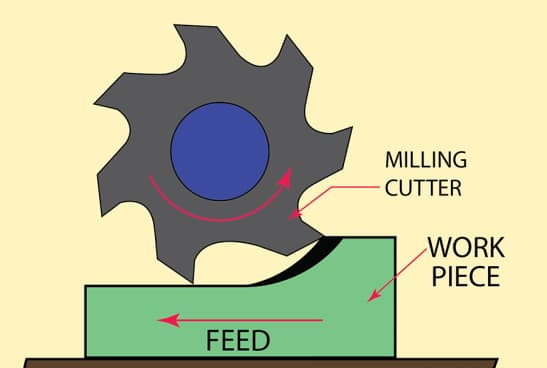

You can get an idea of how it's working from the figure below.

 To produce desired shapes, you need to push the cutting tools in the opposite direction of the workpiece movement.

Conventional Milling Machine and Applications

Following are the applications for which the traditional milling is used:

• To prepare intricate and curvy parts
• For smoother surface finish
• For prototyping
• For different types of gears
• To prepare casting moulds

<iframe width="1189" height="669" src="https://www.youtube.com/embed/galm5_6SUcM" title="Climb Milling vs. Conventional Milling?rel=0" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Conventional Milling vs. Climb Milling: Historical Context

In the late 1890s, conventional milling was the most preferable method. However, during World War II, climb milling came into the field due to the increasing demand for high precision. Nowadays, climb milling is more common than conventional milling.

Advantages of Climb Milling

This section contains applications of the climb milling:

Better Surface Finish

Advanced tools and CNC machines provide a better surface finish than steel and Al.

Longer Tool Life and Reduced Wear

Due to lower surface roughness, friction is reduced so that wear reduces, and material life is increased.

Lower Cutting Forces and Heat Generation

Since climb milling is used for only softer materials like Al and low-carbon steel, a lower cutting force is required, and heat generation is lower.

Simplified Work holding

Since the cutting tool path operates in the direction of the workpiece, that's no complex work holding is required.

Climb Milling vs. Conventional Milling: Efficiency Benefits

Climb Milling is efficient for softer materials and conventional for harder materials. More efficient products have been obtained in climb milling due to automatic machining in CNC machines.

Advantages of Conventional Milling

Let's figure out some advantages of Conventional Milling:

Stability and Control

As the cutting tool operates in the opposite direction of the workpiece, it provides greater stability and control, which results in a decrease in vibration. Zero backlash provides greater control over the tools due to its low cutting force.

Ideal for Finish Passes and Smaller Cuts

To get the desired surface roughness, we often use the final round of removing the unwanted material and that is called a finish pass. Conventional milling is considered a better option for finish passes and smaller cuts.

Zero Backlash and More Precise Cutting

In the case of conventional milling, it is relatively easier to get zero backlash and precise cutting. Zero backlash means that there are no unwanted gaps on the workpiece, after the milling operation. So that the other machines can move accurately and repeatedly without any unintended motion.

When to Choose Conventional Milling for Specific Materials

Every milling method is suitable for different materials, which means the milling methods are limited to materials. You should choose the cutting method keeping the machining precision in mind.

• For softer materials, choose Climb Milling
• For harder materials, Choose conventional Milling

Disadvantages of Climb Milling

Every technique has its pros and cons, as the pros have been discussed above following are the cons of this technique.

Potential for Backlash and Stability Issues

The cutter's force pulls the workpiece and table into the cutter which leads towards unwanted movements and positioning errors.

Not Ideal for Harder Materials

Harder materials like high-carbon steel are very difficult to machine because of high brittleness. So, material integrity will be in danger using that technique.

Risk of Tool Deflection and Inaccuracies in High-Speed Operations

You will see in CNC machines; that the speed of the tools is very quick. Fast machining will make you face challenges like tool deflection and dimensional inaccuracies. If your sample is defective like an undercut on the surface, the frequency of such challenges will be higher.

Climb Milling Direction and Its Challenges

These are some notable challenges during climb milling.

• Tool deflection
• Errors in positioning the workpiece
• Backlash
• Harder materials

Disadvantages of Conventional Milling

Now, it is the time to make you familiar with the disadvantages of conventional milling.

Surface Finish Issues with Conventional Milling

Due to manual tools and the chance of human errors, the product comes with certain challenges in which the surface finish is the main. It is difficult to get a smoother surface finish.

Higher Heat Generation and Its Effects on Tool Life

It causes high friction which results in high heat generation, so the tool life decreases because the cutting tools operate in the opposite direction of the rotation of the workpiece.

Increased Cutting Forces and Their Impact on Stability

You can take the example that when you hike a mountain, you must give more force same is the case with the conventional milling technique. You need to exert increased cutting forces to remove the material, which can affect the impact on stability.

Differences Between Climb Milling and Conventional Milling

Let us get into some general differences between Climb milling and Conventional milling:

Climb vs. Conventional Milling: Cutting Direction and Tool Movement

Climb Milling:We have seen the figure earlier in the introductory section, the cutting path for the climb milling is the same as the direction of the workpiece movement.

The tool moves in a clockwise direction.

Conventional Milling: The tool moves in an anticlockwise direction.

The direction of the cutting path is opposite to the movement of the workpiece.

Surface Finish Comparison: Climb Milling vs. Conventional Milling

Climb milling: Since the operations are automatic and human labour is not involved in machining the high surface finish as compared to the conventional milling technique.

Climb Milling vs. Conventional Milling: Which Method Is Best for Different Materials?

This section will tell us which milling technique is best for different materials.

Climb Milling vs. Conventional Milling Aluminum

Aluminium being a harder material, machining must be done by conventional milling.

Climb Milling vs. Conventional Milling Plastic

For softer materials like plastic, climb milling is the most suitable technique due to its cutting tools.

Choosing Between Climb Milling and Conventional Milling: When to Use Each

• Climb Milling: For softer materials and tight tolerances
• Conventional Milling: for harder materials

Choosing Climb Milling for Heavy Cuts and Soft Materials

Since the tools are fitted in the machines which can put a higher force ~ 1000N easily, that is why it is preferable to choose climb milling for heavier cuts and soft materials.

When to Use Conventional Milling for Finishing and Precision

• Conventional Milling => preferable for thinner and more delicate cuts
• Because of good control of tool forces, a smooth finish and higher precision can be produced

Factors to Consider: Part Geometry, Material Type, and Cutting Speed

These factors mentioned in the heading, should be considered before selecting a milling method. Appropriate consideration will lead towards saving money and type. If the material is hard and you choose climb milling, it will result in breakage of tools etc.

Understanding the Milling Terms: Up Milling vs. Down Milling

You will understand how up milling and down milling are correlated to conventional milling and down milling respectively. These up-milling and down-milling are the other names of these types of cutting methods used in the industries.

What is Up Milling and How Does it Relate to Conventional Milling?

Up milling is like hiking a mountain, the force is applied in the opposite direction of workpiece movement, that's why it is related to conventional milling.

What is Down Milling and How Does it Relate to Climb Milling?

The cutting tool moves downside. In the climb milling, the cutting path is the same as the movement of workpiece, that is why it is called down milling.

Climb Milling vs. Conventional Milling: The Effect on Chip Thickness and Cutting Forces

Climb Milling

First, the chip thickness first increases and follows decrease to the end. It results in

• Lower cutting force
• Lower tool wear
• Conventional Milling

Chip thickness decreases then increases, resulting in:

• Higher cutting force
• Higher tool wear

Up Milling vs. Down Milling in CNC Machines: Differences and Applications

• Up Milling
• Direction of the cutting tool: Opposite to the workpiece movement
• Applications are found in
• rough machining
• machining the harder materials

• Down Milling
• Direction of the cutting tool: Same as the workpiece movement

• Applications are:
• Machining Precision
• Finishing Operations
• Machining softer materials

Practical Tips for Climb Milling and Conventional Milling

A man should follow the following tips to avoid any issues:

How to Minimize Backlash in Climb Milling

The following tips will help you to minimize the backlash in climb milling.

• Use spring-loaded systems, and double nuts, which works as anti-backlash devices.
• The machine should be well-maintained
• Preload the table

Adjusting Milling Parameters for Best Results

For best results or machining Precision, set these parameters carefully:

• Cutting speed
• Feed rate
• Depth of cut

Tool Selection and Its Impact on Milling Strategy

Choosing the appropriate tools is very important for milling operations to save time, waste of material and integrity of the cutting tool. For instance, tool geometry should be matched with the geometry of the workpiece.

Using CNC Machines Efficiently for Climb and Conventional Milling

CNC machines will produce parts of fine tolerance and accuracy if you:

• Program tools path carefully
• Optimize tool changes and setups
• Use backlash compensation

Climb Milling vs. Conventional Milling: Which is Best for Your Project?

If my project contains softer material like Al, you should choose the climb milling process and vice versa.

Start Your Next CNC Milling Parts Project with Tuofa

Toufa is a Chinese company which is equipped with the best CNC machines. We offer you the machining of complex parts with great precision and tight tolerance in the dimensions. Due to fully advanced machines, our mass production is large in shorter times, so, we offer the delivery of machined parts in the possible shorter times at reasonable costs.

Frequently Asked Questions (FAQ) About Climb Milling and Conventional Milling

Is it Better to Use Climb Milling or Conventional Milling for Aluminum?

You know, Al is a soft metal which is why we will use climb milling to achieve high-quality production.

Can Climb Milling Be Used on All Materials?

No, it is not so versatile. It is limited to only softer materials, you can say, Al, Cu etc.

How Does the Climb Milling Direction Affect Performance?

In the climb milling, the tools operate in the direction of the workpiece movement. As a result, lower mechanical force is required for machining. This feature results in enhanced performance because of a smoother surface finish and high tolerance.

What Type of Milling Feeds the Workpiece Against the Cutting Tool Rotation?

• Conventional milling
