Milling Stainless Steel Explained: Advantages, Applications, and Processing Techniques

Stainless steel is a material that finds applications in industries, such as construction and manufacturing. However, it's important to note that not all steels are made equal. Only a few might be suitable for your application, and it is not recommended to use unprocessed material for any application. Machined stainless steel or milled steel differs from other kinds by offering many different benefits. In this comprehensive overview, you'll find the benefits of machined steel, explore the steel milling process, and discover why China Tuofa Custom Metal Milling Service can be a good fit for your steel milling needs.

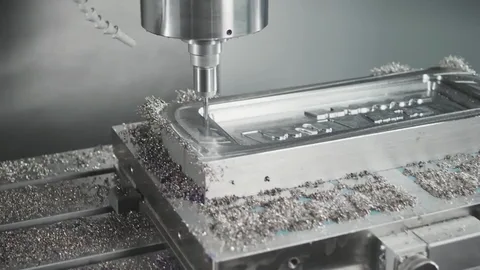

Steel Milling

Milling Stainless Steel Definition

Stainless steel milling refers to the process of producing components from an alloy of iron and carbon known as milled metal or milling stainless. It is carried out using stainless milling tools, both manual and CNC mills [2]. The machining process involves removing extra material from a steel workpiece to produce the required shape and dimensions. This method involves using such steel milling tools that are designed with precision to effectively cut through the nature of stainless.

Following video shows the CNC milling process to form complex shape and pattern,

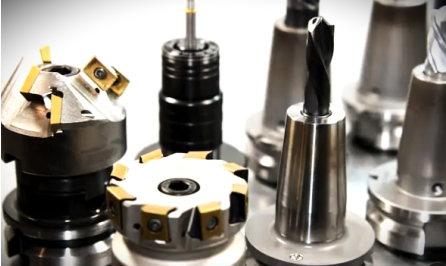

Cutting tools

The Benefits of Milled Steel

Machined stainless steel offers advantages that make it suitable for a range of uses. Some of these benefits include:

1. Stainless steel milling offers control over shape, size and reduces the risk of errors which increases the overall precision and efficiency, which is required for automotive, aerospace, and other manufacturing industries.
2. At several areas where aesthetics and surface finish is the main concern, steel milling can provide a plain, smooth, shiny and polished surface with a long-lasting effects. So, it could make a product look worthy and attractive.
3. Also, milled metal is stronger and more durable. Any defect or scratches on the surface are removed by machining processes so that no crack initiation can be observed when a material bears stresses or cyclic loads. This makes milled metal more recommendable for applications where strength is the main concern.

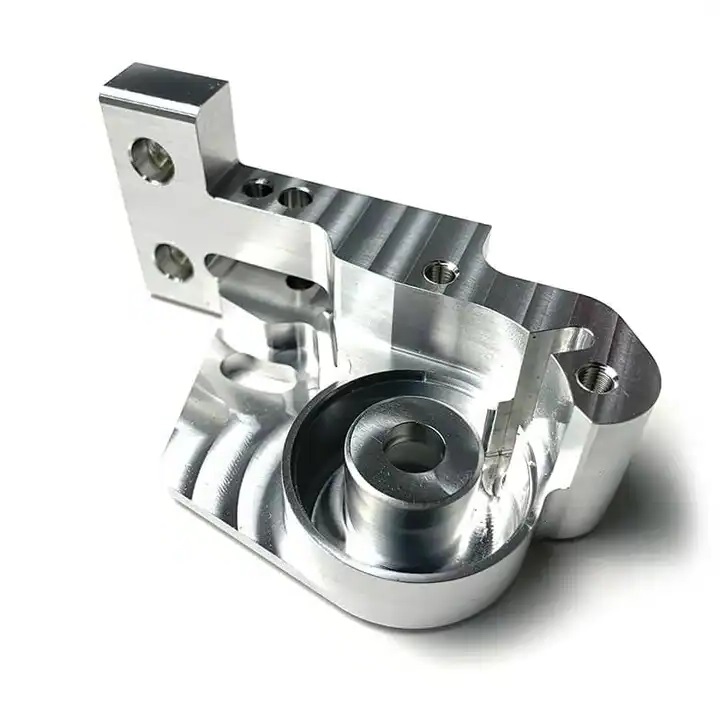

Machined steel

Common CNC Milling Stainless Steel Materials of Characteristics

CNC milling service is a precise method of machining parts from various materials, including different grades of stainless steel. Here are some typical characteristics of stainless steel materials used in CNC milling:

Limitations or Challenges of CNC Milling Stainless Steel

Along with the advantages of milling steel there are also several limitations that are critical to acknowledge.

1. It is sometimes not economical or affordable for low-budget applications as the need of specialized tools is a necessity.
2. For precision machining, there is a need of skilled operators with appropriate knowledge and numerically controlled equipment.
3. Furthermore, the hardness of steel can cause difficulties during the milling process. It needs strong tools along with certain criteria for precision machining. This criterion involves proper speed and feed rate.

Steel Milling Process: Step by Step

The steel milling process consists of various processes that are used to shape and size an unprocessed steel workpiece. Here's all the details of the steel milling process:

1. Workpiece Preparation: The procedure begins with the steel workpiece being prepared for milling. Surface cleaning, contaminants removal, and the proper clamping for holding the piece of metal during machining are all part of this process.
2. Tool selection: The appropriate steel milling tools are essential for successful steel milling. Tool selection is influenced by factors such as steel type, required cutting parameters, and the complexity of the machining operation.
3. Machine Setup: Once the workpiece and tools have been ready, the milling machine must be set up. This includes altering machine settings such as spindle speed, feed rate, and depth of cut dependent on the needs of the milling operation.
4. Milling: After everything is in place, the milling process begins. Cutting tools remove excess material from the workpiece in an orderly fashion while following the specified tool path and cutting parameters. This process is repeated until the required shape and dimension are obtained.
5. Finishing: After milling, the milling steel component is finished by polishing, or coating to improve its surface finish and appearance. Quality control tests are performed to verify dimensional accuracy and standardization.

The following video shows the whole milling process. It involves the relevant information about choosing mill according to your application and discussed the related parameters,

Stainless Steel Milling Speed and Feed Rate

Because of its high hardness and limited thermal conductivity, milling stainless steel requires careful consideration of speed and feed rate to produce the best results. Consider the following elements:

1. Cutting speed: Stainless steel milling should be done at a slower pace than other materials to avoid overheating and excessive tool wear. It is advisable to begin with a moderate cutting speed and adjust according in accordance with effectiveness and tool life.
2. Feed Rate: For stainless steel milling, a lower feed rate is often desirable for chip control and reduce the possibility of work hardening. A slower feed rate aids chip removal and reduces heat generation.
3. Cutting Fluid: Choosing the right cutting fluid is essential for efficient stainless-steel milling. The cutting fluid aids in the cooling of the tool and workpiece, the lubrication of the cutting zone, and the flushing away of chips. It is best to utilize a high-performance cutting fluid designed specifically for stainless steel machining.

For hard materials, tool speed should be kept low to avoid tool breakage. On the other hand, the rate is comparatively higher in case of soft materials. Following table shows the tool speed for certain materials.

Note: sfm indicates as Surface Feet per Minute.

Why Choose China Tuofa Custom Metal CNC Milling Service

Following a summary of the advantages and disadvantages of milled metal, selecting the correct partner for your steel milling requirements is vital. China Tuofa Custom Milling Metal Service offers a complete solution to your steel milling needs.

China Tuofa manufactures precise milled metal components that match the best industry requirements, thanks to cutting-edge machinery, talented operators, and a dedication to quality. The understanding of steel milling methods promises precise dimensions, a higher surface finish, and long-lasting products. Contact Tuofa now info@tuofa-cncmachining.com

In-addition, China Tuofa Custom Milling Metal Service provides low pricing and fast turnaround times, making it a dependable and cost-effective alternative for your steel milling projects, whether specific or large-scale.

FAQ

Which grade of steel is most suitable for milling?

Ans. There are many grades of steel including SS303, SS304, 1045, 1018, 1144, 4140 that provide good machining properties.
