Iron Carbon Phase Diagram: Definition, Phases, and Applications

The Iron-Carbon Phase Diagram is super important in materials science. It shows how different temperatures & carbon amounts change the phases of iron and its alloys. When engineers get this diagram, they can make steel even better, which helps in many areas—like building stuff or flying planes.

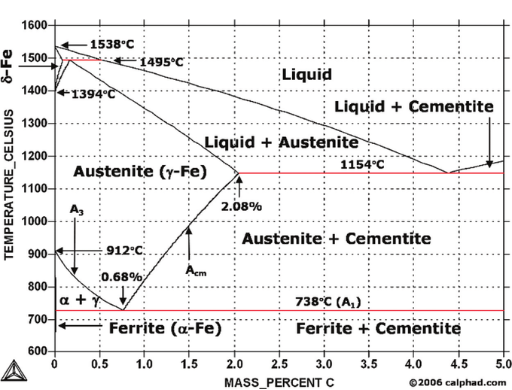

Fig 1: Fe-C phase diagram

What is the Iron-Carbon Phase Diagram?

This diagram is a chart that helps us see how temperature and carbon levels work together with iron and its alloys. It’s really helpful in metallurgy 'cause it can predict what kind of microstructure you’ll get in steel or cast iron.

What is the hardest phase in the iron-carbon diagram?

Now, martensite is the toughest phase in the Iron-Carbon Phase Diagram. This tough guy forms when austenite cools down really fast. When it cools quickly, carbon can’t escape from the iron’s structure. So, you get a solid solution that’s super hard & strong.

Why does the iron-carbon phase diagram go only to 6.7% carbon?

There’s a limit on how much carbon can be in the Iron-Carbon Phase Diagram—6.67% at most. That’s because, at that level, you make cementite (Fe₃C). If there’s more carbon than this, materials become brittle & aren't great for engineering stuff.

Phases, Phase Boundaries, Eutectic Point

Phases

Homogenous and distinct part of the system. It has different properties than other parts of the systems.

Phase Boundaries

The regions where phase transformation takes place are known as the phase boundaries. Common boundaries that we must mention are the A1 line, A3 line, and the ACM line

Eutectic Point

This point is found on the Fe-C diagram which signifies the conversion of the liquid phase into two solid phases. This transformation occurs at 1147°C with 4.3% C.

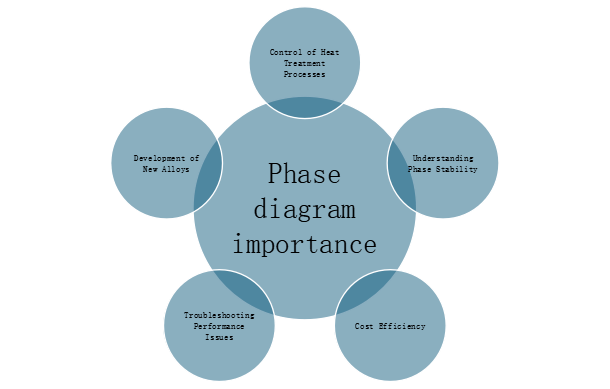

Why Phase Diagrams Are Essential in Alloy Design

These diagrams are of great importance in your everyday application and help you in determining the exact composition, properties, and microstructural changes required in your application.

Crystal Structures in Iron

Following are the prime crystal structures found in the Fe-C phase diagram:

α-Ferrite

You will find a BCC structure in alpha iron with a maximum carbon content of up to 0.02%. Moreover, if you require good magnetic properties in your application, then this phase plays a key role in that aspect.

γ-Austenite

In this phase, you will find an FCC structure with a maximum carbon content of up to 2.14%. Additionally, if your application demands any change in strength properties then this phase is important in carrying out several heat treatment processes.

δ-Ferrite

You will find this phase at elevated temperature which is around 1390°C and consists of a BCC structure. This phase will favor you in applications that require stability at high temperatures.

Cementite (Fe₃C)

This is the hardest phase in this phase diagram with maximum C content up to 6.67%. Moreover, it will benefit you in applications that require high-strength steel.

Liquid Phase (Fe-C Solution)

This phase helps the manufacturer in executing casting processes and you will find this phase at elevated temperature roughly around 1530°C.

What are the Five Solid Phases in an Iron-Carbon Diagram?

Following are the five phases you will find in this phase diagram:

• Ferrite
• Austenite
• Cementite
• Delta ferrite
• Pearlite

Characteristics of Each Phase

The below table provides you with the important characteristics of each phase:

Table 1: Phase Characteristics

Temperature Ranges and Stability of Each Phase

Below are the important phases with their temperature and stability range:

α-Ferrite: This phase exists from room temperature to nearly 910°C and you will observe its stable condition below 727°C with low C.

γ-Austenite: This phase exists from 727 to nearly 1147°C and you will observe its stable condition above 727°C with high C.

Cementite: For this phase, you will find its temperature range below 1147°C and certainly stable with high C in its composition.

δ-Ferrite: You will find the formation of this phase between 1390-1538°C and favor stability at elevated temperatures.

Pearlite: You will observe the stability of this phase in eutectoid composition. Additionally, its formation occurs at 723°C.

Major Reactions in the Iron-Carbon Phase Diagram

The following reactions take place which are mentioned below:

Eutectoid Reaction

Below is the eutectoid reaction which signifies you the conversion of one solid phase into a further two solid phases.

Eutectic Reaction

Below is the eutectic reaction which signifies the conversion of the liquid phase into a further two solid phases.

Peritectic Reaction

You will observe the below reaction at an elevated temperature of roughly around 1498°C which occurs by the reaction of a solid and liquid phase resulting in austenite.

Phase Boundaries and Critical Points

Below is the brief description of phase boundary and important critical points:

Understanding the Eutectic and Eutectoid Points

Eutectic point:

• Occurs at 4.3% C and a temperature of 1147°C.
• Transformation of liquid into γ and Fe₃
• Important in cast iron production.

Eutectoid Point:

• Occurs at 0.76% C and a temperature of 727°C.
• Transformation of γ into α and Fe₃
• Gives you pearlite, responsible for a blend of strength along with toughness.

Critical Temperatures in Iron-Carbon Alloys

Table 2: Critical temperatures

Lever Rule and Composition Analysis at Boundaries

A tool for mathematical calculation that provides you with phase proportion (mass fraction) within a specific range of temperature as well as composition.

Phase Fields and Stability Regions

The below details give you a brief analysis of phase fields and stability region:

Interpreting Stability Regions for α, γ, and δ Phases

For α-Ferrite, the phase exists from room temperature to nearly 910°C and you will observe its stable condition below 727°C with low Moreover, the γ-Austenite phase exists from 727 to nearly 1147°C and you will observe its stable condition above 727°C with high C. Finally, you will find the formation of δ phase between 1390-1538°C and favor stability at elevated temperatures.

Implications for Steel Heat Treatment

When you understand the stability region effectively, will benefit you for optimized heat treatment. Hence, crucial for phase transformation control, microstructure development along with material longevity.

Classification of Steels by Carbon Content

The major classification of steel is given below:

Hypoeutectoid and Hypereutectoid Steels

The hypoeutectoid steel gives you good ductility along with toughness in your applications and a C content of less than 0.76% is found in this steel. On the other hand, hypereutectoid steel offers you good hardness while compensating ductility and has more than 0.76% C

Role in Heat Treatment and Alloy Customization

This phase diagram offers you numerous insights, especially in heat treatment and customizing the alloy.

Predicting Mechanical Properties through Phase Analysis

Key features that help you in predicting mechanical properties through phase analysis are:

• Controlling microstructural changes
• Good understanding of critical temperatures
• Alloy properties customization

Types of Steel Applications

Table 2: Steel types & applications
