How to Sandblast Brass | 4 Key Tips

Brass is an alloy of copper and zinc. It has improved strength and ductility as compared to copper. Recently many industries started using sandblasting technique for the surface finishing of brass. To optimize the process of sandblasting you need to have control on certain parameters. So here is a guide if you are getting started with sandblasting of brass.

Is Brass Sandblasting Easy

Brass is a soft material and sandblasting can produce scratches over the surface of brass. It can also cause work hardening in brass and makes it brittle. After blasting, during cleaning process it is difficult to remove sand or bead over the surface. Alternative techniques like water honing technologies are more affective for this process. Water is used instead of air for sandblasting block. Regardless of the complexities still sandblasting of bronze is used commercially and to make this process effective you have to keep in mind the tips that are given in this article.

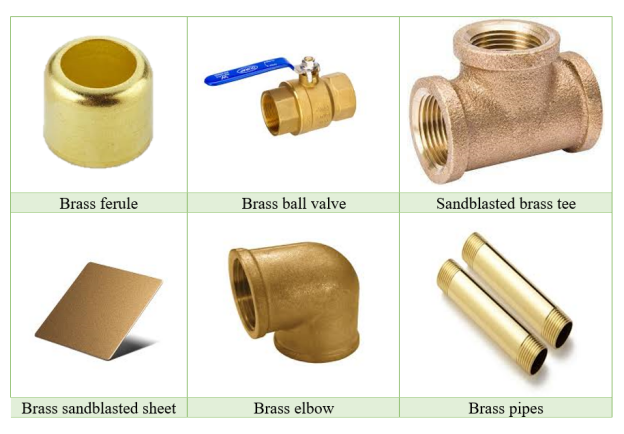

Do you think those brass products need sandblasting?

1. brass pipe
2. brass ball valve
3. brass elbow
4. brass sheet metal
5. brass ferrule
6. brass check valve
7. brass tee
8. brass inserts
9. Brass fitting

Sandblasting can be applied on almost all types of brass products. It can be done for any of the above-mentioned parts if they need a clean or textured surface. But if they need a great aesthetic appearance sandblasting is not the right choice.

Some sandblasted brass products mostly used in domestic water supply.

What’s your sandblast kit?

Your sandblasting kit should consist of following equipment:

1. Sandblasting gun or nozzle attach with a pipe.
2. Air compressor for blasting sand with pressure.
3. Abrasive media (which is sand in this case)
4. A cabinet with an exhaust system (optional, it stops contamination)
5. Safety equipment (goggles, respirator, gloves)

How to Sandblast Brass

Following steps are normally used for brass sandblasting:

Brass surface preparation

Before sandblasting parts should be disassembled first than any kind of dirt or oil stains should be removed by using soap water.

Safety precautions

Health and safety equipment gloves, goggles, respirator and appropriate cloth should be worn.

Blasting process

First of all, the nozzle is connected to the air compressor and then sand particles are filled inside the nozzle. After that, the substrate is placed inside the chamber having good ventilation. You can hold the material by yourself or it can be placed. First the sandblasting is tested on any waste substrate other than brass substrate to check the output.

It is started with low pressure and a distance of 6-8 inches between the nozzle and the substrate. Gun is carefully moved across the substrate to achieve uniformity over the brass surface.

Brass Finishing

According to your requirement you can polish or buff the surface and can also apply protective coating over the brass substrate.

Here is YouTube video showing sandblasting of brass to remove nickel coating over the substrate:

Pros and Cons Sandblast Brass Chart

Here are some advantages and disadvantages of this process

4 Key Tips for sandblast brass

Here are the four tips that you should always keep in your mind before sandblasting brass

Selecting the appropriate abrasive material

As discussed before brass is a soft material and it requires a fine abrasive media for cleaning purpose. A course abrasive will scratch the surface and it can even cause pitting. Most commonly used abrasive media for sandblasting are aluminum oxide, glass beads or fine sand etc.

Air pressure and nozzle distance

Air pressure and nozzle distance are very important parameters for getting the desired texture on the surface. Due to the delicate nature of brass air pressure is kept low which will also save the material form scratches and work hardening. Nozzle distance is normally from 6-8 inches, you can vary it to produce a desired texture.

Surface preparation

Any kind of dirt or oil stains should be roved before the blasting this will help the abrasive media to adhere uniformly over the surface and good quality finish is achieved.

Testing before blasting

Testing sandblasting before using on a brass substrate will help you to gain control over the result and also stops the wastage of the brass substrate.

Is Sandblasting Brass Increase Pressure?

Sandblasting brass using increased pressure has some advantages and some disadvantages as well. To remove heavy corrosion product and coatings high pressures are used. It is also used for creating a deep onto the brass surface.

It also has some disadvantages like scratching, pitting and creating uneven textures on the brass surface.

Does Sandblasting Make the Brass feel rough at all?

Sandblasting can be used as a roughing process. The degree of roughness depends upon the sand particles and the pressure used. Fine particles and low pressure will produce a smooth surface and high pressure and coarse particles will produce a rough surface.

How to Clean Sandblast Brass

Cleaning of brass after sand blasting can be done using warm soapy water and a soft cloth. It is done to remove the residual abrasive material. You should not use abrasive cleaners because they can damage the textured surface. It can also be cleaned using a wax or a grease remover and at the end it should be blow dried.
