How to Paint Aluminum: Perfect Finish

Aluminium has high corrosion resistance and high strength to weight ratio. This is often selected for versatile properties in different applications. Many applications require surface finish or painting on aluminium for better high gloss surface properties. Painting aluminium can be challenging because of its oxide layer and non-porous surface. To get effective results, painting aluminium must be carried out by choosing right paint, surface preparation and maintenance of painted surface. This information is covered in this article in detail.

Can You Spray Paint Aluminum?

Yes, aluminium can spray paint for a high gloss and smooth even surface finish. Special spray paints are available which are designer for metals and have built-in-primer. Cleaning the aluminium surface is the primary step. Apply several light coats and allow each coat to dry. It is recommended to work in ventilated environment and wear safety kits for protection.

Pros and Cons of Painting Aluminum Surfaces

pros of painting

painting the aluminium or metal surfaces has its own benefits. Some of them are:

• Colour options

Paints have a wide range of colour and texture option. It is a good alternate to powder coating and other costly coating techniques.

• Tolerance

Painting is normally preferred for maintaining tight tolerances. The coat of paint has finer thickness than powder coating. It normally does not affect the fit and form of part in an assembly.

• Cost

Paint is a cost-effective option than powder coating in terms of equipment and production.

Cons of painting

painting metal surfaces also have some limitations

• Durability

Paint has less durability than powder coating. It can easily be chip off, scratched or peeled off and does not last long.

• Application

Painting metal surfaces can be challenging in term of coverage. Consistent coverage is hard to achieve. It also requires serval coat of pain and thus drying time which takes longer in applications.

Environment and safety

Paints have solvents which must be disposed of carefully. Otherwise, this could be a serious environmental concern. Paints also contains substances and can be risky for workers causing respiratory, nervous, and circulatory systems issues.

Essential Supplies and Tools for Painting Aluminum

Tools and supplies needed for painting aluminum are as:

Cleaning Supplies

Special aluminum cleaners are used for heavy grime. Otherwise, mild detergent and warm water can be used for surface cleaning the aluminum.

Sandpaper and Abrasives

Fine grit sandpaper 180-220grit is used to sand the surface lightly.

Primers

Aluminum has special primers, or some paints have built-in primers to etch the surface. Self-etching primer and epoxy are also used to create a base for paint.

Paint Options

Latex or water-based paint, acrylic paint, Polyurethane paint, direct-to-metal paint, epoxy paints and oil-based paints are used for aluminum painting.

Protective Gear and Equipment

Gloves, eye protection kit (safety glasses, face shield), air Respirator with organic vapour cartridges to keep out paint fumes must be used while painting the aluminium.

How to Paint Aluminum: Step-by-Step Guide

There are a few steps to follow to get effective results in painting aluminum.

Step 1: Properly Cleaning the Aluminum Surface

Proper cleaning the aluminum surface is the primary step to adhering to the paint. Drop cloths must be paced under the aluminum part to prevent the dripping. Mild detergent and special aluminum cleaners are used for cleaning the aluminum surface. dip a clean cloth in clean water to remove soap and other residue on surface.

Step 2: Sanding the Aluminum for Better Adhesion

To Sand the surface is important step to create adhesion between surface and coat of paint. Fine grit sandpaper and wipe cloth are used in this step. The grit size of 60-80 is fine to start the sanding which gradually move to 220 grit size. Sanding creates a rough surface for new paint to grip and old paint to remove from the metal surfaces.

Step 3: Etching the Surface for Improved Paint Bonding

Etchant are used to have better bonding between the paints and surface. Self-etching primers are used to etch the surface.

Step 4: Applying the Primer to Prevent Peeling

Primers are used to prevent chip off, peeling and scratching of paint. Apply certain primer coat to ensure a solid layer is created. Drying time between coats must be enough to have uniform primer thickness. After the final coat drying, use 400-grit size sandpaper and wipe the residue away

Step 5: Painting the Aluminum Surface

Aluminum surface is normally painted with latte or acrylic paint. Normally, 4-5 coat of paint are applied, and it is cured for 24 hours before exposing it to harsh weather. Matt and satin finish is better than high gloss for aluminum because it hides wear and tear. These are also more reflective and can survive high temperatures.

Step 6: Sealing and Protecting Painted Aluminum

After drying and curing the paint, enamel sealant is applied on metal surfaces. This step is optional, but it protects the paint from UV rays, damage and discoloration.

Do You Need Prime Aluminum Before Painting?

Yes, primer is an essential to apply before painting aluminium. It ensures the paint adhesion to the metal surfaces and increases the resistance to chip off, scratch of paint. It also increases the lifespan and durability of paint. Aluminium has non-porous surface and without primer, it is hard to adhere the paint to the surface.

Painting Aluminum: Techniques and Best Practices

The best practice of painting aluminum is that it is durable and does not peel off easily. This is achieved by:

• Clean the aluminium surface properly to remove any dirt or grime by detergent or cleaner, then rinse and dry.
• Sand the surface in a way that a rough texture is created for better paint adhesion
• Etch the surface or use self-etching primer for better adhesion.
• Use paints that have high flexibility and durability like acrylic latex.
• Use matte and satin finish rather than high gloss to have reflective surface with high temperature resistance
• Regular inspection and maintenance to avoid damage and deterioration.

Common Mistakes to Avoid When Painting Aluminum

• Always wear protective kit to safeguard against paint fumes.
• Workplace must be well-ventilated to prevent the fume buildup.
• Surface preparation is an essential step to ensure effective paint results. This includes cleaning, etching and priming.
• Regular cleaning and maintaining the equipment to avoid malfunctions.

How to Paint Different Aluminum Surfaces

Painting Aluminum Sheet Metal

Sheet metals are normally painted by Latex or acrylic paints. If it is an outdoor project, exterior grade paints must be used and avoid high gloss to avoid highlighting the imperfections on the metal surface.

How to Paint an Aluminum Boat

Aluminum boat paints have a resin that is two times a primer. It increases the durability of paint. Aluminum boats are painted the same way as other aluminum parts are painted.

Painting Aluminum Flashing

It is recommended to properly and adequately paint aluminum flashing to protect its integrity. Water tightness is essential to avoid moisture infiltration into the building envelope. This can result in structural damaging and unhealthy molds.

Painting Cast Aluminum

Water based and oil-based paints are used for aluminum castings. These are highly durable and have better corrosion resistance.

Window Frames

Acrylic latex paints have higher flexibility and durability for aluminum window frames. Serval coats of paint are good for extreme temperatures and humidity.

Garage Door

Acrylic and epoxy-based paints are best for garage door at home

Aluminum Wheels

Aluminum wheels are painted with epoxy paint, high-temperature paint, automotive enamel paint and powder coating. This increases durability and it can withstand harsh conditions

Outdoor Furniture

Self-etching primers must be used for outdoor furniture to ensure a strong bond between metal surface and paint.

How to Paint Polished Aluminum

Acrylic latex paints are best for polished surface. these have high adhesion and durability.

How to Paint Oxidized Aluminum

Self-etching primer removes the natural oxidation layer and helps the paint to adhere to the aluminum surface.

Best Way to Paint Aluminum

Oil-based primers, latex primers and paints, are best for aluminum.

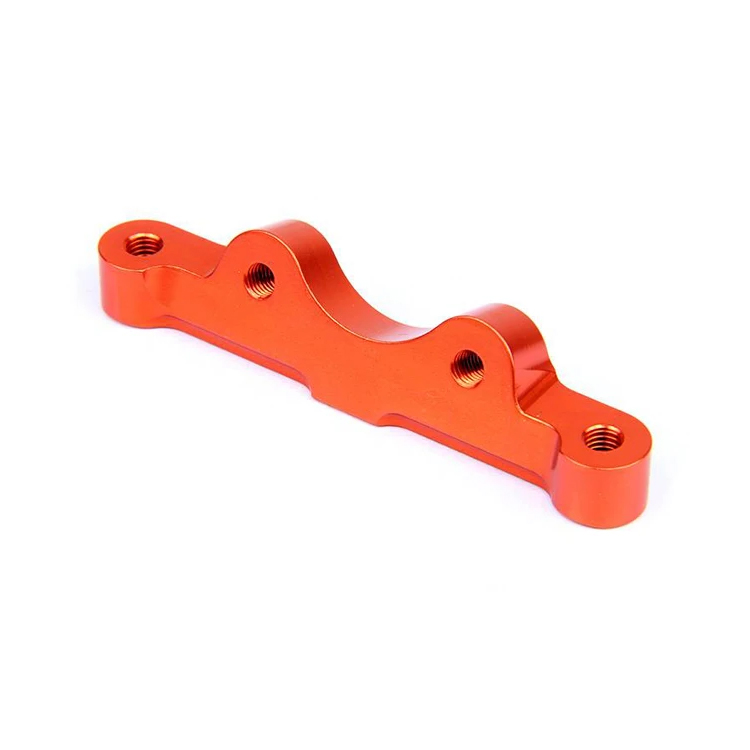

Best Spray Paint for CNC Aluminum Parts

Acrylic latex paint is the best option for CNC aluminum parts. It has high adhesion, durability, and scratch resistance
