CNC Machining Espresso Machine Parts List: Process & Surface Finish

CNC machining is a versatile technology and can produce a variety of espresso machine parts like filter baskets, nozzles, portafilters and other structural parts with high precision and repeatability in manufacturing. This article will provide detailed information about the coffee machine part list, process and surface finish of espresso machine by CNC machining.

Why Choose CNC Machining for Espresso Machine Parts?

CNC machining is chosen for making coffee device parts because of its precision, high-quality, speed, repeatability and capabilities to manufacture complex shapes and intricate geometries and cost-effective production.

The Precision and Accuracy of CNC Machining

CNC machining provides high accuracy and precision which is a requirement for intricate espresso machined parts with very tight tolerance of ±0.0025mm (a quarter of a human hair) while standard tolerances is ±0.1mm.

Cheaper in Mass Production

CNC machine is very cost-effective in mass production due to economies of scale. It also reduced labor costs with automation and efficiently material utilization which results in low per part costs.

Complex Geometries and Customization

CNC machines are excellent at manufacturing complex geometries and custom parts by multi-axis capabilities, advanced software integration, precise tooling and can produce intricate shapes and features that are hard to produce with conventional machining.

CNC Machined Espresso Machine Parts List: Precision Ones

CNC machining can create precise and intricate part with high quality and functionality. The espresso machine parts list is explained below:

Group Head

Group head body and gaskets are the parts where coffee is extracted, holding portafilter and regulate water flow with pressure.

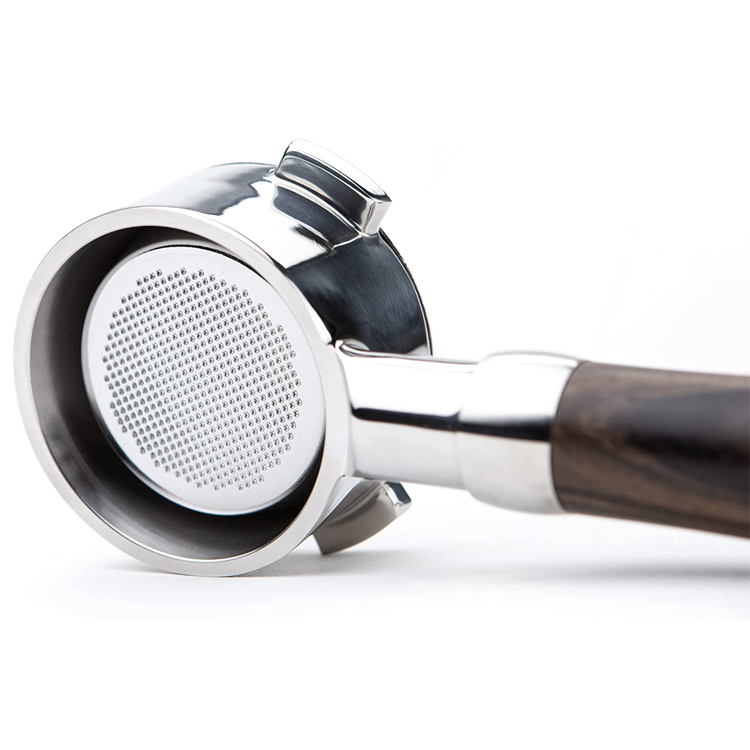

Portafilter

This parts has handle, basket and spout to hold the coffee grounds before brewing espresso. It is also called as filter handle

Steam Wand

Steam wand can create frothy milk for cappuccinos and lattes by using steam to heat and froth the milk inside the wand

Boiler

Boiler is responsible to heat and hold pressurized water which is important for espresso extraction.

Drip Tray

Drip trays and dreg box can hold the runoff from the brewer during the process. This helps to clean the counterpart clean.

Dispensing Head

This dispensing nozzle is an important part for texturing milk and creating microfoam. Dispensing switch is locate over the top of the group it actuates.

Custom Parts

CNC machining allows customization of parts like adjustment ring or knobs which is located around the bean hopper or for pressure gauge for boiler pressure and pump operating pump.

CNC Machining Process for Espresso Machine Parts: Step-by-Step

Espresso machine processing involves several steps which are discussed separately below

Step 1: Material Selection

Material selection of espresso machine parts CNC is based on factors like durability, functionality and machinability. Commonly used materials are stainless steel, brass and aluminum.

Step 2: Design and CAD Modeling

Espresso machine design is created by 3D modeling using Computer-aided design (CAD) that identifies all the dimensions, geometries and features.

Step 3: CNC Programming

CAD model is translated into a sequences of commands that a CNC machine understands (G-code) program and then machine parameters are setup accordingly.

Step 4: Machining Process

Machining process starts guided by G-code and operations like milling, drilling, turning are carried out that involves using rotatory cutter for material removal, creating holes and rotating cylindrical work piece to cut shape, respectively

Step 5: Final Inspection and Quality Control

After processing, parts required additional finishing to get desired finish such as deburring, polishing, coating and then parts is inspected to ensure requires tolerances and specification are met.

Surface Finishing Techniques for Espresso Machine Parts

A wide range of surface finish techniques are available for espresso machine part and these are

Polishing

It creates a smooth, reflective surface and improve visual appearance of metal parts of espresso machine. It is time-consuming and require labor for complex parts.

Anodizing

It is an electrochemcial process that forms a protective oxide layer on the surface of aluminum parts of espresso machines. It improves corrosion resistance and allows a range of colors.

Electroplating

It involves use of electric current to create a thin layer of metal onto a substrates. It is used to decorate or for protective purposes of espresso machined parts.

Bead Blasting

This finish uses a stream of abrasive particles of glass beads to clean and to roughen surface of espresso machine parts CNC and prepare them for painting and coatings

Shot Peening

This involves bombarding the metal surface with tiny, round particles (shot) to form a cold-worked layer with compressive residual surface on the machines parts of espresso machine.

Sandblasting

This is the same process as bead blasting but uses sand as abrasive particles to roughen the surface of espresso machine parts.

Role of Surface Finish in Espresso Machine Part Performance

Surface finish is crucial for the aesthetic and performance of espresso machine parts. Its importance is explained below:

Enhancing Durability and Corrosion Resistance

Surface finish creates smoothness and reduces friction between parts increasing durability and minimizing wear and tear. It also protects the surface against corrosion for the parts that are exposed to water and steam

Aesthetic Improvements

It contributes to overall functionality and appearance of machine parts impacting user experiences. A well-finished surface also helps in smooth assembling and compatibility between joint parts.

Improving Functional Performance

Overall functional performance is better due to reduces friction, smooth surface and less heat generation which enhances longevity, efficiency and performance.

Conclusion

CNC machining can produce various parts for espresso machines like steam wand, group head, dispensing head and nozzle and portafilter with high functionality, performance and precision. An additional surface finish process such as electroplating, anodizing, shot peening, bead and sand blasting improves corrosion resistance, wear resistance, aesthetics and functionality of espresso machine parts.

FAQ

What types of materials are most used for CNC machined espresso machine parts?

Common materials are aluminum alloys (6061 and 7075), stainless steel, brass along with plastics like nylon, polycarbonate and acrylic

How does anodizing improve espresso machine parts?

Anodizing improves durability, corrosion and wear resistance, lifespan and aesthetics by creating a protective layer on the surface of espresso machine parts.

What is the purpose of shot peening in CNC machined parts?

Shot peening improves fatigue resistance and service-life by inducing compressive residual stress layer on the surface and prevent from crack initiation and propagation
