Understanding 5052 Aluminum: A Comprehensive Guide

CNC machining of Aluminium is quite easy because it is lightweight and has good corrosion resistance. But aluminum has a range of alloys from 1000 to 8000 and each category has different and unique features. Aluminum in the initial series is close to wrought aluminum and has less strength and resistance. but with the series the properties become stronger and are high in demand due to high thermal properties, mechanical properties, corrosion resistance and many more. Aluminum 5000 series is very famous for properties and 5052 is one of them which is known for its workability. The detailed analysis on aluminum 5052 is presented in this article along with the applications of 5052 aluminum, properties, pros and cons and other important aspects that are necessary to know when working on 5052 aluminum alloy.

Introduction to 5052 Aluminum

Aluminum alloy 5052 is wrought alloy and contains only 4% of alloying agents. Alloys which have a higher amount of alloying elements make them brittle and hard. And it is not easy to machine and weld these alloys. But low concentration in 5052 is famous for its machineability and workability. Because it has great corrosion resistance and mechanical properties. Its saltwater and harsh environments endurance is very strong and its great uses; and famous as marine grade aluminum.

Historical background and development

Aluminum was first discovered in 1787 by Antoine Lavoisier and its extraction from bauxite was carried out by Hans Christian in 1825. Aluminum 5052 was developed in 1930s in USA because a cost effective and a machinable aluminum alloy for sheet metal fabrication was required. The term 5052aluminum was given by aluminum association based on its composition. In 5XXX group, magnesium is the main alloying element. The second digit ‘0’represents the presence of impurity in the commercial alloy.

Different terms for 5052 Aluminum

5052 is a wrought alloy belongs to 5000 series aluminum categories. It is normally known as an aluminum-magnesium alloy. Because Mg is the main alloying element in this alloy after aluminum.

Is 5052 Aluminum Magnetic?

5052 is not magnetic. In fact, it is used in applications where nonmagnetic interference is required.

Does 5052 Aluminum Rust?

5052 aluminum alloy has good corrosion resistance. it has high resistance in saltwater and salt spray. Therefore, it has many applications for marine structures such as natural gas tankers.

Different forms of 5052 Aluminum

Aluminum alloy 5052 has different forms as:

1. Sheets: flat and thin plane of aluminum 5052 having a smooth surface is used in construction, automobiles and aerospace industries.
2. Rods: aluminum 5052 in the form of cylindrical bars is used in manufacturing and engineering.
3. Coils: long and thin piece of aluminum 5052 that can roll as a coil is used in food packaging and roofing.
4. Tubes: cylindrical shaped aluminum 5052 is mostly used in food packaging because it can seal and be printed by one or both ends.
5. Plates: thick and flat aluminum which is lighter in weight and has high durability can be used in structural applications and as solar reflective plates.

Chemical Composition

The data sheet of chemical composition of aluminum alloy 5052 is presented below:

Comparison with other aluminum alloys

Aluminum alloy 5052 is comparable with aluminum alloy 6061. 5052 has a smoother finish than 6061. But is non heat treatable. The fatigue strength, elastic modulus and formability is higher in 5052. And when compared to 6063, it has less toughness.

Physical Properties

The datasheet of Physical properties of aluminum alloy 5052 are given below:

Mechanical Properties

The datasheet of mechanical properties 5052 and its tempers are as:

The datasheet of temper 5052 is:

Manufacturing Process

The manufacturing process of aluminum alloy 5052 is carried out in serval steps which are: smelting, casting, cutting, preparation for rolling, flat rolling, heat treatments and finishing step. The preparation takes place before rolling mainly includes quality inspection of casting, dipping, sawing, milling, coating, and heating of aluminum parts.

Heat Treatment

5052 is heat treated by annealing carried out at 345℃. 5052 normally required stress relieving which is carried out at about 220℃. But it is necessary to conduct a stress relief test before cutting because the aluminum part might lose strength in this process.

Is 5052 Aluminum bendable?

Yes, aluminum 5052 is ductile and soft and it can bend easily without failing or cracking and has good cutting properties.

Is 5052 Aluminum weldable?

Yes, it is weldable. The temper and strain-hardened 5052-H32 is highly weldable and has good cutting properties among all. And 5052 is considered one of the best weldable materials.

Machining

Aluminum 5052 has fair machining and cutting properties. It is much easier to machine and cutting of 5052 in temper or strain-hardened state than in annealed aluminum 5052. And the temper aluminum 5052 has smooth finish. It is better to use lubricant oil for all the machining except light cut.

Surface Treatment

The surface treatment for aluminum 5052 are:

1. Anodizing: it creates oxide layer over the surface which protects it from corrosion and enhance hardness
2. Painting: it is applied for corrosion protection and for decorative purposes. Prior cleaning is required for better adhesion of paint.
3. Polishing: for smooth finish, brushing of aluminum 5052 is carried out. It can be done via chemically or mechanically.
4. Powder coating: dry powders are coated over the surface to make coating durable and corrosion resistant.
5. Brushing: rough lines are created over the surface for better corrosion resistance.

What is 5052 aluminums used for?

There are many applications of 5052 aluminum alloy. Some of them are as:

• Marine applications

5052 has better corrosion resistance against saltwater and harsh chemicals. This resistance is best for marine structures like gas tankers which are vulnerable to failure. Mostly boats are made of aluminum alloy 5052. Aluminum alloy 5052 is durable and has longer life in seawater as compared to other alloys.

• Transportation

In transportation fields such as for aircraft, buses, cards or trucks manufacturing, aluminum alloy 5052 is one of the most used alloys. It is lightweight, durable and has high corrosion resistance which makes it useful where energy consumption is concerned.

• Fuel and gas containers

Gas and fuel containers are vulnerable to corrosion. Aluminum alloy 5052 is one of those materials that can provide corrosion resistance along with durability and is lighter in weight which makes transportation easier. That is why it is famous from a commercial point of view.

• Electrical components

Aluminum alloy 5052 is a better electrical conductor and it is safer to use in electrical components. There are many reasons, but the primary reason is the resistance against electrostatic discharge. It is safer to use inside and outside of electronic housing especially in domestic use.

• Manufacturing

It is considered as efficient alloy to use in manufacturing in the form of robots. It is lightweight and easy manufacturing of aluminum alloy 5052 are the main properties which makes it suitable for manufacturing.

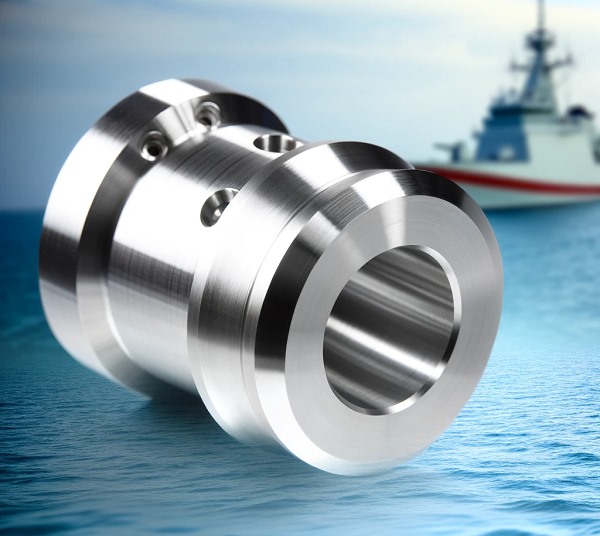

Marine Grade Aluminum: Why 5052 is the Go-To Choose

Aluminum 5052 is a non-heat treatable alloy. This implies it has high strength. The fatigue strength is also higher than the other aluminum alloys. The corrosion resistance against saltwater and harsh chemicals are very high. And this is the primary reasons for being a marine grade aluminum.

Standards and Specifications

The 5052-aluminum standard and ASTM specifications for aluminum alloys are as:

Pros and cons of 5052 Aluminum

The advantages and disadvantages of aluminum alloy 5052 are as:

Advantages

There are many special applications of 5052 aluminum which are due to these advantages that are explained below:

• Corrosion resistance

The primary feature is the corrosion resistance especially against the seawater which is why it has many applications as marine grade aluminum and for transportation containers for gas and oil tankers. It is also durable and has a longer life as compared to other alloys when exposed to sea environments.

• High weldability

5052 can easily be welded without any complications and without special procedures. The common welding techniques are metal inert gas and tungsten inert gas welding and many more.

• Higher strength

The durability and strength of aluminum 5052 is also comparable. Although there are many others aluminum alloys which have high strength and toughness, it is also a good option in many conditions.

• High machinability

Complex procedure and expensive equipment are not required in the machining of aluminum alloy 5052. It is a wrought alloy which makes it ductile and soft. This implies it is bendable to any shape without being failure.

• High formability

Different and complex shapes can easily be made by 5052 without cracking and failure. This is a good option for construction and automobile applications.

Limitations

Aluminum alloy 5052 also has some limitations. And these are.

it cannot be strengthened by heat treatments or surface treatments.

Its plasticity is good in semi cold hardened state but when it is cold hardened, plasticity becomes very poor.

Comparison with other materials

When compared with other materials like stainless steel, 5052 has better corrosion resistance. This is a great feature for being a “marine grade aluminum” which cannot be achieved in any stainless-steel grade.

What is equivalent to 5052 Aluminum?

6061 has properties that are equivalent to aluminum 5052. In fact, 6061 has better thermal conductivity. This makes it suitable for heat dissipation uses.

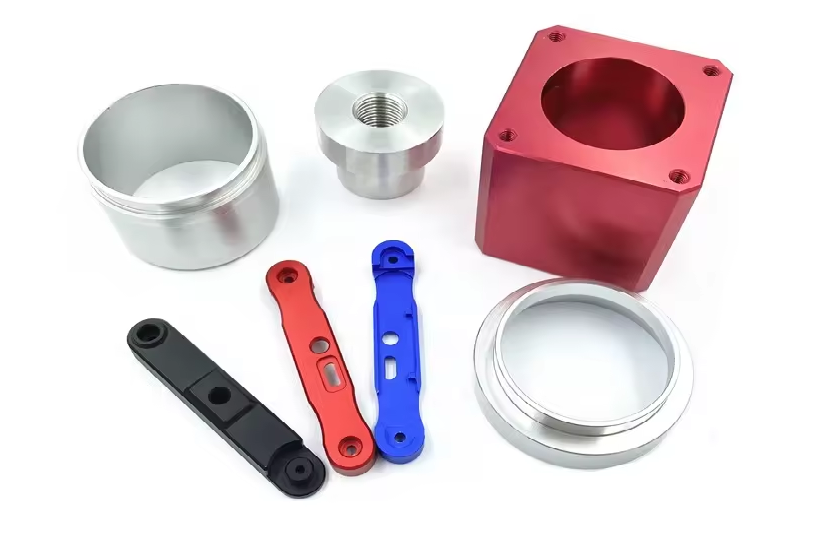

Best Practices in the Custom 5052 Aluminum Parts

5052 aluminum alloy is malleable, ductile, machinable and suitable for cutting and sheet metal fabrication. The response of 5052 to CNC machining is also good.

Cost-Benefit Analysis

Comparing the 5052 with other 5000 series aluminum alloy or 6061, it is a cost-effective option. This analysis is done by analyzing supply demand, production cost and logistics of any material.

Advanced Fabrication Techniques

The fabrication techniques used for 5052 are casting, cutting, rolling, CNC machining, and sheet metal fabrication.

Conclusion

5052 has good formability, corrosion resistance, weldability and has moderate strength, which is suitable for applications like manufacturing aircraft components, fuel pipe, transportation trucks, ship metal parts and electrical housing. Corrosion resistance of 5052 is exceptional especially for seawater and sea environment and it is also known as marine grade aluminum. Other than that, aluminum 5052 is very famous in the construction industry and architecture engineering. For industrial applications of 5052 aluminum, it is required to where high plasticity and weldability is required.

Tuofa's 5052 aluminum CNC machining services are among the best in China, Our mechanical engineers innovated the CNC turning process, which can save 15-30% of the cost.

You can send drawings to info@tuofa-cncmachining.com now to learn more.

FAQ

What is the difference between 5052 and 6061 aluminum?

The major difference between 5052 and 6061 aluminum alloys is that 6061 is a heat-treatable alloy. It also has higher strength and stress corrosion resistance. 5052 has better seawater corrosion resistance.

5083 vs 5052 aluminum

5052 has less magnesium as compared to 5083 which is why it has better formability. 5083 is more brittle and harder and cannot be formed easily. If hardness is compared to 5083 it is better and has better corrosion resistance properties.

5052-H32 vs. 6061-T6: Which is Better

5052-H32 has high magnesium and chromium which increases its fatigue strength and electricity. It also has better formability than 6061-T6. But 5052-H32 material is more expensive than 6061-T6.
