Yield Strength vs Tensile Strength: Core Differences in Material Science

In the material science, strength is the backbone of each material that is being used for any application. This article will tailor two vital properties ie, yield strength and tensile strength which may seem similar or interconnected but on the ground reality, they both represent different aspects of a certain material under load or stress. Understanding the differences and similarities between both the properties is crucial for tailoring any application to ensure factors like safety, resilience, and longevity. In addition to this, ASTM standard strongly influences the difference between these mechanical properties to be crucial and sensitive in selecting material, design for any application.

Overview of Mechanical Properties in Materials

Mechanical properties serve a great purpose in the field of material science when meeting specific requirements for various applications. Regardless of the industry, from aerospace to automotive, as well as manufacturing, these properties are of prime importance for selecting and designing a material. Among all other properties, our keen attention is on tensile along with yield strength. The point leading to material permanent deformation refer to its yield strength while the maximum load or stress a material can withstand before failure denotes its tensile strength.

Apart from that, major mechanical properties are mentioned below:

Figure 1. Mechanical properties

Understanding Yield Strength

Definition and Significance

Yield strength is the maximum load bearing capability of a certain material without leading to permanent deformation.. Hence, the point of transformation from elastic to plastic region.

The significance of this property can be determined on how important its role is while dealing with material design and structural integrity proving itself to be a critical parameter for material safe operation. Secondly, this property helps the engineers to investigate and determine how much load a material can withstand before failure.

Elastic vs. Plastic Deformation:

Table 1. Elastic vs Plastic Deformation

Role in Material Selection and Design:

• Material Strength
• Safety and Reliability
• Performance Optimization

Factors Affecting Yield Strength

1. Material Composition: What is Carbon Steel?

Steel that comprises of iron and carbon as main constituent elements with little amount of other alloying elements like Mn, Si and S is known as carbon steel. The amount of carbon ranges between 0.05%-2% affecting its yield strength with various other mechanical properties . High C content enhances yield strength because of solid solution strengthening mechanism while excess amount of carbon leads to steel embrittlement.

Figure 2 . Carbon steel

2. Heat Treatment and Environmental Conditions

Heat treatment and environmental conditions also has a significant influence on yield strength of a material.

• Heat Treatment: Heat treatment methods like quenching and tempering can change the microstructure of carbon steel, modifying its yield strength. Quenching enhances yield strength by rapid cooling either in oil or water. On the other hand, tempering increases overall toughness and lowers brittleness caused due to quenching.
• Environmental Conditions: Temperature, moisture, humidity, and exposure to harsh and aggressive corrosive substances has a great impact on the yield strength of material.

Measuring Yield Strength

1. Stress-Strain Curves: Visualizing Yield Stress

                Identifying yield point on the curve then the stress that corresponds to that point is the yield strength of the material. Furthermore, reading from stress axis at yield point could be taken directly if the materials yield point is defined properly otherwise different approach can be taken ie , 0.2% offset method. This method comprises of parallel line drawn to the linear part of the curve and offsetting it by a strain percentage number.

2. Standard Testing Methods

Several methods are used to determine yield strength. The common ones are mentioned below:

Tensile Test:

• Prior to fracture, maximum force (tensile) is applied to material specimen.
• The subsequent stress-strain curve found from the test specifies valuable data, plus the yield strength.

Offset Method:

• A specified amount of plastic deformation typically 0.2% strain is used to determine the yield strength.

These methods follow established standards set by organizations like ASTM and ISO ensuring efficiency, precision with consistency in yield strength measurements.

Exploring Tensile Strength

Defining Tensile Strength

Maximum load bearing capability without failure is defined as tensile strength. This property enables engineers to assess the pulling force, ie, stretching or elongation under tension that a material can withstand without causing permanent damage.

Ultimate Stress Point and Ultimate Strength:

The ultimate stress point refers to that point at which a certain material ruptures while the resultant value of stress is known as ultimate strength or ultimate tensile strength (UTS) which is the highest stress before complete failure that a material can withstand.

Relation to Material Failure:

Tensile strength is a critical parameter for any material to know its exposure to failure under tension. When exposed to tensile loading, materials deformation occurs ie, from elastic to a plastic region. Ultimately, when the applied load exceeds the material's tensile strength, it leads to a breaking point which eventually results in fracture.

Determinants of Tensile Strength

The determinants of tensile strength in steel encompass various factors related to material type, microstructure, manufacturing processes, and applied materials.

Material Type and Microstructure:

The type of the material and the microstructure plays a vital role while determining the tensile strength. This can be further explained by taking the example of duplex stainless steel with martensitic transformation as well as precipitation hardening grades have greater tensile strength while comparing it with austenitic steel .

Apart from that, alloying elements like Cr, Mb, and Ni also has a great impact on mechanical and corrosion resistant properties in steel components. For instance, high chromium ferritic grades such as 446 exhibit high hot strength.

Manufacturing Processes and Applied Materials:

• Addition of alloys while manufacturing is done to enhance the strengthening properties of the component material especially the tensile strength especially alloys like Mn, Nb and V. However, their addition can compromise other properties including weldability, toughness along with ductility.
• Mechanical working also has a great influence in increasing the tensile strength especially when steel undergoes rolling, it becomes stronger.
• Different heat treatment processes such as normalizing, quenching, and tempering, and thermomechanical rolling has great impact on tensile strength and various other mechanical properties of steel.

Testing for Tensile Strength

1. Tensile Testing Equipment

Following are the equipment used for tensile testing:

Tensile Testing Machine :

1. Other name is universal testing machine,
2. an increased tensile force is applied to a material specimen until it fractures.
3. It consists of a load cell to measure the applied force and a crosshead to grip and stretch the specimen.

Figure 3. Tensile testing machine

Extensometer :

1. It is attached to the sample specimen to measure the amount of elongation or deformation that occurred.
2. It provides data on strain, which is crucial for calculating tensile strength.

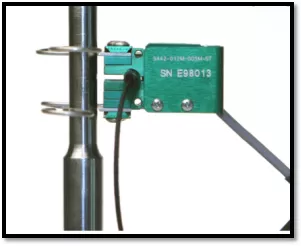

Figure 4. Extensometer

2. How to Calculate Tensile Strength: Interpretation of Test Results

Following steps are used to determine this strength of the material:

• Determine Cross-Sectional Area
• Calculate Stress
• Identify Ultimate Tensile Strength (UTS)
• Interpret Test Results.

Yield Strength vs Tensile Strength: What's the Difference?

Comparative Analysis

Table 2. Yield vs tensile strength

YouTube link:

https://youtu.be/ad6HrMoONow?si=YIzCFYzHRyinhlI9

Graphical Representation on Stress-Strain Curves:

• Yield Strength: As shown in the stress strain graph, the deviation of the curve from the linear part of the curve ie, elastic region and start initiating towards the plastic region is the yield point.
• Tensile Strength: The peak point on the stress-strain graph that denotes the maximum stress the material can withstand before failure.

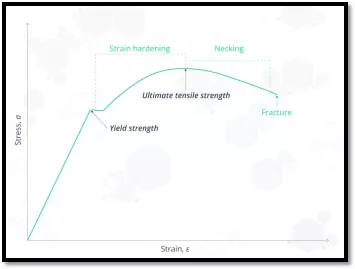

Figure 5. The stress-strain curve showing yield strength and tensile strength

Yield and Tensile Strength in Different Materials

Table 3. Yield and tensile strength of different materials

Material Selection for Specific Applications

In CNC Machining:

Material selection is always an important aspect in CNC machining to achieve the desired machined product. Stainless steel or titanium, which are considered among the materials with high tensile strength requires specified parameters than low yield strength materials such as brass, aluminum.

In Design:

Design is another thing which needs to be considered while selecting materials for specific applications. To prevent material from early or premature breaking, high tensile strength is crucial specifically when subjected to high load or stress bearing applications.

In Safety Considerations:

In safety consideration, this property plays a major role as it provides a crucial information based on which engineers can make a choice for specific application. As the definition itself says that yield strength indicates the point before permanent deformation.

Ductile Example and Bent Molecular Geometry:

Applications that demand complexity in their geometrical shape or require certain amount of bending prefer high ductile materials like aluminum alloys and various steel grades. Such material can deform plastically without any permanent damage or fracture ie, failure of material. Hence, they can ensure optimized performance and functionality especially in bent molecular geometry allowing fabrication for complex geometry with guaranteed structural integrity. Examples include architectural structures and automotive body parts.

Supplemental Topics

1. Stress Relief in Material Science: Ensuring Product Reliability

Residual stresses have a great impact on material structural integrity and reliability. Therefore, various stress relief techniques are critical and vital in material science. There are several methods to ease and reduce these internal stresses that may be induced during manufacturing.

2. Shape and Design: The Role of Material Properties

The role of material properties is crucial in modifying and shaping the design of the component. Various factors that have a strong influence and dependance on stability of a material are strength ductility as well as thermal conductivity.

3. Max Stress and Deformation: Understanding Material Limits

Material limits is an essential factor to understand especially for guaranteeing structural integrity and safety margins. Analyzing and interpreting the maximum load or stress a material can withstand is crucial to prevent any catastrophic failure.

4. When to Use Parentheses: Interpreting Technical Data in Material Science

Parentheses are frequently used in technical data in order to denote complementary information or units. Understanding and interpreting when to use parentheses in the material science data interpretation is critical for precisely communicating information and guaranteeing precision in technical communication.

5. Is Tensile Strength the Same as Ultimate Strength? A Deep Dive

Both are very closely related but somehow have different mechanical properties. The difference only lies in the highest stress point on stress strain curve before failure refers to ultimate strength. On the other hand, maximum load or stress material can withstand tension for tensile strength.

6. Addressing Common Misconceptions in Material Science

Misconceptions in material science need to be addressed as equally as other important aspects for greater accuracy in different applications both in engineering and design. There are many terms and topics like hardness and toughness relationship, temperature impact on various properties of the material and most importantly, the microstructure impact and influence on the behavior of material component.

Summarizing Key Takeaways

There are several key takeaways from this article which are mentioned below:

• The difference between both mechanical properties is ultimate in materials science and engineering.
• Tensile strength denotes the maximum stress a material can endure before fracture. On the other hand, yield strength grades the point of permanent deformation.
• Tensile testing and analysis of stress-strain curves, engineers can accurately measure and analyze these properties, informing decisions in machining and safety concerns.
• Supplemental topics like stress relief techniques as well as addressing misconceptions further provide product trustworthiness and promoting effective decision-making in practices.
• Understanding the concepts on the deeper level and more critically encourages engineers to optimize each aspect for specified application.
