CNC Machining Thin-Wall Parts for Aerospace: Best Practices and Techniques

CNC thin-wall machining is crucial in the aerospace industry, where precision, weight reduction, and structural integrity are key. However, machining thin-walled parts presents several challenges, such as deformation, poor rigidity, and difficulty in maintaining surface quality. This guide offers best practices and techniques to overcome these challenges, ensuring high-quality and cost-effective machining processes.

Key Challenges in Machining Thin-Walled Parts

Machining thin-walled parts requires careful planning and execution. Here are the key challenges you’ll face and how to address them.

How Thin Can Metal Be Machined?

The minimum thickness achievable in CNC machining depends on factors like material properties, machine capability, and tooling. Generally, the following guidelines apply:

Precision CNC machining ensures that even these thin materials can be shaped without compromising structural integrity. However, achieving these limits requires advanced tooling and strict process controls.

Poor Rigidity and Structural Weakness

Thin-walled parts naturally lack rigidity, which can cause:

• Vibration: Increased vibration leads to poor surface finishes and reduced dimensional accuracy.
• Deflection: The part may flex under cutting forces, leading to inaccuracies.

Solutions

• Toolpath optimization: Use adaptive toolpaths that distribute the cutting load.
• Clamping: Apply evenly distributed clamping forces to minimize deflection.
• Cutting strategies: Opt for climb milling over conventional milling to reduce tool pressure (more details in a later section).

Part Deformation in Thin-Wall Structures

Deformation is a major issue in thin-walled parts due to the low rigidity and high cutting forces.

Techniques to Mitigate Deformation

• Step Down Machining: Gradual reduction in cutting depth minimizes stress.
• Low Cutting Forces: Use smaller depths of cut and feed rates.
• Pre-Stressing: Apply external forces to the part during machining to reduce internal stresses.

Common Causes of Thin-Wall Deformation

Work Holding Solutions for Thin-Wall Parts

Choosing the right work holding technique is crucial for ensuring precision without damaging the part.

Work Holding Techniques

Vacuum clamping works well for lightweight or delicate thin-walled components, while mechanical clamping is better for more robust parts.

Fixture Design for Complex Geometries

Custom fixtures are often necessary for irregular or complex thin-walled parts. Innovative techniques such as:

• 3D-Printed Fixtures: Customized, lightweight, and precisely shaped to support thin sections.
• Modular Clamping Systems: Adjustable clamps that can secure multiple geometries.

By designing tailored fixtures, you can improve stability and reduce deformation risks.

Tooling Selection for Thin-Wall CNC Machining

The choice of tooling plays a critical role in maintaining precision and minimizing defects during machining.

Choosing the Right Tools

Selecting the proper tool geometry and material helps reduce the cutting forces and improve surface finish.

Special Considerations for Thin Wall Aluminum

Aluminum is commonly used in aerospace due to its light weight and strength. However, it’s prone to chatter during machining, which impacts precision.

Tooling Tips for Aluminum:

• Sharp cutting tools: Prevents excessive material deformation.
• High helix angle tools: Promotes better chip evacuation and reduces vibration.
• Coolant: Use coolant to manage heat and minimize thermal expansion.

Optimizing Cutting Speeds and Feed Rates

Achieving the perfect balance between speed and accuracy is critical for thin-walled parts.

Balancing Speed and Accuracy

High speeds can lead to heat buildup, which causes warping, while slow speeds can result in longer cycle times and increased costs. To optimize:

• Use lower depths of cut: Reduces heat generation and cutting forces.
• Adjust feed rates: Slower feeds for accuracy, higher feeds for rough cuts.
• Coolant: Prevents overheating, which is crucial for thin-walled materials.

Benefits of High-Speed Cutting

High-speed machining (HSM) can be beneficial for thin-walled parts due to:

• Reduced cycle times: Higher spindle speeds lead to faster machining.
• Better surface finish: Less time for heat buildup, which reduces distortion.
• Improved tool life: Reduced tool pressure and wear.

Tool Path Optimization for Thin-Wall Machining

Optimizing the toolpath is essential for controlling forces applied to thin-walled parts.

Advanced Tool Path Strategies

Adaptive tool paths, like High-Efficiency Machining (HEM), distribute cutting forces more evenly and reduce tool pressure on the part. This helps maintain dimensional accuracy in thin-walled structures.

Benefits of Adaptive Tool Paths:

• Lower cutting forces: Reduces the risk of deformation.
• Improved tool life: Lower stress on cutting edges.
• Consistent material removal: Leads to better surface finishes.

Climb vs. Conventional Milling

Climb milling is generally preferred for thin-walled machining as it produces smoother finishes and lowers cutting force, reducing the chance of part distortion.

Deformation Control

Deformation in thin-walled parts can arise due to several factors. Understanding these helps in process planning.

Factors That Cause Deformation

Process Optimization

Optimizing your machining process helps control deformation:

• Optimize tool paths: Reduce the cutting load with adaptive strategies.
• Control temperature: Use coolant systems and minimize dwell times.
• Choose appropriate materials: Work with materials with low residual stresses.

Assistive Support Technology

Assistive technologies can greatly improve the precision of thin-walled machining.

CNC Compensation Technology

Advanced CNC machines offer compensation techniques that adjust tool paths in real-time based on sensor feedback. This ensures dimensional accuracy even when slight deformations occur during machining.

Vibration Dampening and Structural Support

Vibration dampening technologies, like tuned mass dampers or active damping systems, reduce vibrations, which improves precision and surface finish. Bracing thin walls with temporary support structures also minimizes the risk of deflection during machining.

Surface Finish Considerations

Achieving the right surface finish is particularly challenging with thin-walled parts.

Achieving High-Quality Surface Finishes

To get optimal finishes:

• Use sharp tools: Reduces tool pressure and improves surface quality.
• Apply finishing passes: A light, fast finishing pass reduces surface imperfections.
• Control speed and feed rates: Balanced parameters prevent over-machining and ensure a smooth finish.

Advanced Metrology for Thin-Wall Parts

Accurate measurement is critical for ensuring thin-walled parts meet the required tolerances.

Precision Measurement Techniques

Both techniques ensure precise measurement of thin-walled parts, helping detect deformations and maintain tight tolerances.

Leveraging High-Speed Cutting and Heat Management

High-speed cutting presents unique challenges, particularly in terms of tool wear and heat generation.

Managing Tool Wear and Heat in High-Speed Machining

To extend tool life and control heat during high-speed machining:

• Use coolant: Prevents overheating.
• Optimize cutting speed: Balance speed and feed to minimize heat generation.
• Select proper tooling materials: Carbide and diamond-coated tools resist wear better at high speeds.

Digital Twin and AI for Process Optimization

Digital technologies are transforming CNC machining, offering more accurate simulations and smarter machining paths.

Simulating Thin-Wall Machining with Digital Twin

Digital Twin technology allows manufacturers to simulate machining processes before production. It predicts potential issues like deformation or tool wear, enabling adjustments in advance.

AI-Enhanced Machining

AI can analyze machining data in real time, optimizing tool paths, reducing errors, and improving efficiency. It can automatically adjust parameters to ensure consistent machining quality.

Post-Machining Stress Relief and Heat Treatment

After machining, thin-walled parts may still retain internal stresses that could lead to deformation over time.

Stress Relief Techniques

• Heat Treatment: Apply controlled heat to relieve internal stresses.
• Vibration Stress Relief: Use vibration techniques to redistribute stresses without heating.

How Tuofa Can Help You Customize CNC Thin-Wall Parts

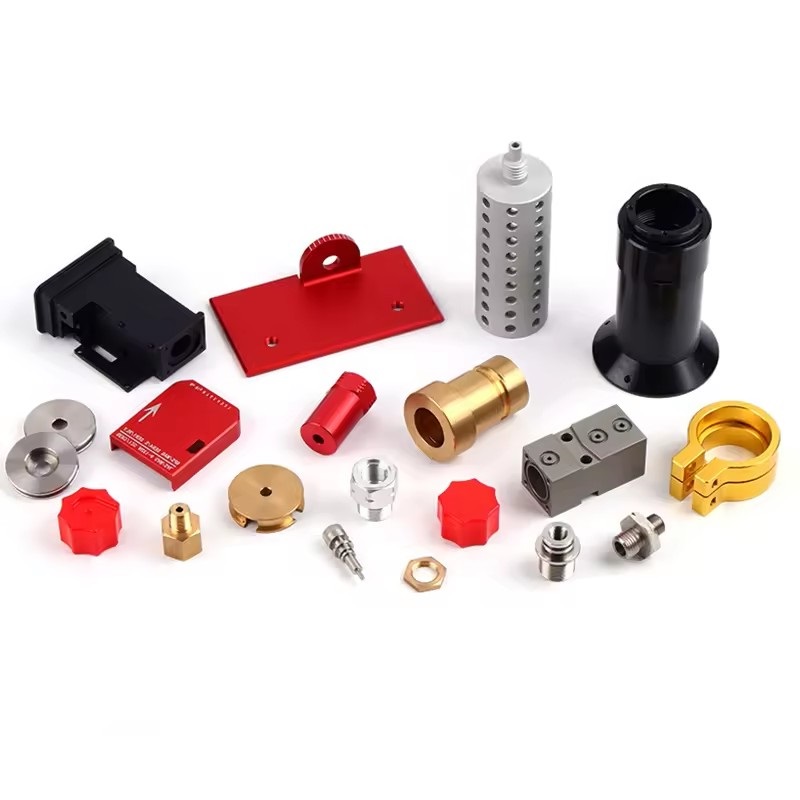

At Tuofa, we specialize in delivering custom CNC thin-wall parts for industries such as aerospace, automotive, and electronics. With advanced machinery, cutting-edge technology, and years of experience, we ensure precision and quality in every part we produce. Whether you need parts made from aluminum, titanium, or other high-performance materials, Tuofa offers tailored solutions to meet your specifications.

Contact us today to discuss how we can assist you with your CNC thin-wall machining needs.
