HomeAnodized Stainless Steel: The Definitive Guide
Aug 07,2024
Metals usually have only a limited range of hues and appearances. Further, their surfaces are prone to wear, abrasion and chemical attack. Anodization has been seen as a surface enhancement technique since more than a century for various metals like Aluminum, Titanium, Copper, Niobium, Tantalum etc. to increase wear and corrosion resistance. Anodized finish also brings different colors to metals. However, for stainless steel, although the process is promising, but there are certain limitations. We will be discussing it in detail in this article!
What is Anodized Stainless Steel
Anodization, generally is an electrochemical process for metals, in which the surface oxide layer thickness is intended to increase to enhance wear resistance, corrosion resistance and appearance. Generally, anodization is not an orthodox process for stainless steel. Rather, the exact process may be used in specific high-tech industries, like biomedical implants manufacturing, where surface characteristics like surface roughness or anti-fouling properties may be changed to make parts bio-compatible. The term ‘anodization of stainless steel’ may be confused in certain commercial applications with ‘flame anodizing’ in which results similar to electrochemical anodization may be attained. In short, it’s possible to have results similar to anodization on stainless steel. However, the route taken to reach the final goal doesn’t matter much as long as results are desirable.
Can you Anodized Stainless Steel?
There is a great debate among industry-professionals on this topic. Some say ‘yes’ and others say ‘no’. But technically, stainless steel can be anodized with certain process control.
Those who say ‘no’, claim that Iron (Fe) from stainless steel dissolves and forms a loosely adherent and highly porous oxide coating (rust) that, instead of preventing corrosion, accelerates it. This phenomenon is more pronounced in acidic solution (as electrolytes) which are commonly used for anodization.
Industry-professionals who say ‘yes’ have a more logical explanation. They manipulate certain process controls for their advantage. They use hot caustic solution as electrolytes and the voltage and current setting is also fine-tuned. Some industries commercially use the term ‘anodization’ for other processes like ‘flame anodization’, ‘heat coloring’, ‘hard coating’ or ‘passivation’ that deliver similar results.
Pros and Cons of Anodized Stainless Steel
| Advantages | Disadvantages |
|---|---|
| Increased corrosion resistance: The anodized layer provides additional protection against rust and corrosion. | Increased cost: Anodizing adds to the manufacturing cost. |
| Improved wear resistance: The oxide layer is harder and more resistant to scratches and wear. | Limited color options: Anodized stainless steel typically has fewer color choices than painted or plated finishes. |
| Enhanced aesthetics: Anodizing can produce a variety of colors and finishes, improving the product's appearance. | Maintenance requirements: The anodized layer may require periodic cleaning and maintenance to preserve its appearance and performance. |
| Increased electrical insulation: The oxide layer has some insulating properties, making it suitable for electrical applications. | Limited applicability: Anodizing may not be suitable for all types of stainless steel. |

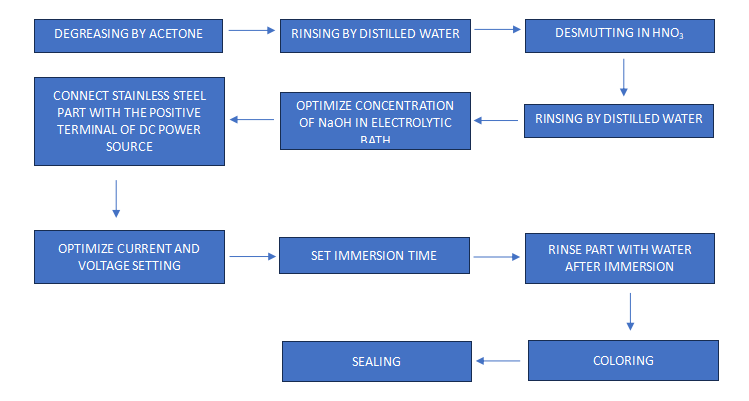

How to Anodize Stainless Steel
Most of the stainless-steel anodization processes are proprietary. It involves electrochemical reactions inside electrolytic immersion tanks of thoroughly degreased and descaled stainless-steel parts. As discussed earlier, acidic solutions are detrimental for stainless steel. So, caustic solutions (mainly NaOH) with a high pH value are used. Current and voltages are important process parameters. Typically, 15-25 V D.C is sufficient. However, higher voltages and long immersion times are used for thicker coatings.
Stainless steel part is immersed in the electrolytic bath and connected to the positive terminal of the power supply to make it the anode. Process parameters like current, voltage, bath concentration, bath temperature and holding time are adjusted to the optimum. It may be followed by rinsing, coloring and sealing processes
Anodization Process for Stainless Steel
| Step | Process | Notes |
|---|---|---|
| 1 | Surface Preparation | Thoroughly clean and degrease the stainless steel surface to remove any contaminants, oils, or grease. This can be done using solvents like acetone or alkaline cleaners. |
| 2 | Rinsing | Rinse the stainless steel part with distilled or deionized water to remove any residual cleaning agents. |
| 3 | Pickling (Optional) | If the stainless steel has a thick oxide layer or heavy contamination, a pickling step using a nitric acid (HNO3) solution might be necessary. This helps to remove the oxide layer and expose a clean surface for anodization. |
| 4 | Rinsing | Rinse the part again with distilled or deionized water to remove any acid residue. |
| 5 | Electrolyte Preparation | Prepare the electrolyte bath using a caustic solution like sodium hydroxide (NaOH) or potassium hydroxide (KOH). The concentration and temperature of the electrolyte are critical parameters that need to be carefully controlled. |
| 6 | Anodization | Immerse the stainless steel part in the electrolyte bath and connect it to the positive terminal (anode) of a DC power source. A cathode (typically an inert material like platinum or graphite) is connected to the negative terminal. Apply a controlled current density and voltage to initiate the anodization process. |
| 7 | Rinsing | After the desired anodization time, remove the part from the electrolyte bath and rinse it thoroughly with distilled or deionized water to remove any residual electrolyte. |
| 8 | Neutralization (Optional) | If the electrolyte used was highly alkaline, a neutralization step using a mild acid solution might be necessary to neutralize any remaining alkalinity on the surface. |
| 9 | Sealing | The anodized layer can be sealed using various methods, such as boiling water, steam, or chemical sealants. Sealing helps to enhance the corrosion resistance and durability of the anodized layer. |
| 10 | Coloring (Optional) | The anodized layer can be colored using organic or inorganic dyes, pigments, or electrolytic coloring processes. This step is purely aesthetic and does not affect the functional properties of the anodized layer. |
Important Considerations:
- Stainless Steel Type: The type of stainless steel (e.g., austenitic, ferritic, martensitic) will influence the anodization process and the resulting properties of the anodized layer.
- Electrolyte Composition: The choice of electrolyte (NaOH or KOH) and its concentration will affect the thickness, morphology, and properties of the anodized layer.
- Process Parameters: Parameters like current density, voltage, temperature, and anodization time need to be carefully optimized to achieve the desired results.
- Proprietary Processes: Many stainless steel anodization processes are proprietary and involve specific conditions and additives that are not publicly disclosed.
Please note that anodizing stainless steel is a complex process and requires expertise and specialized equipment. It is recommended to consult with Tuofa China experts or specialized service providers for optimal results.
Electrolytic coloring of stainless steel
Electrolytic coloring uses the physical phenomenon of ‘thin-film interference’. The naturally occurring chromium oxide layer on stainless steel is transparent, i.e, the light is completely reflected by the base metal hence showing a silver color. However, if the oxide layer is increased in thickness, then light rays are refracted,

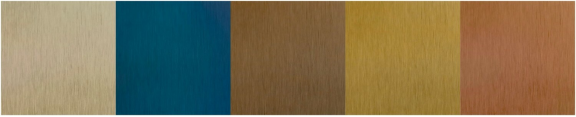

Figure 1: Example colors produced using the INCO process on brushed stainless steel, in the order of champagne, blue, bronze, gold and rose gold, from left to right.
hence showing different hues for each thickness range. This can be achieved by immersing stainless steel in a sulfuring acid and chromium oxide bath while optimizing other parameters like bath temperature, immersion time, etc. The color changes with time in the order champagne, blue, bronze, gold, rose gold, red and green.
Black oxide stainless steel
Figure 2: Black oxide stainless steel screws
A thick, dense and comparatively less porous Fe3O4 (magnetite) layer is intended to form on the surface of stainless steel instead of the more common red colored Fe2O3 (haemetite). As mentioned earlier, being less porous and thick, it can withstand chemical attacks and abrasion to a great extent. Further, the pores can be filled with oil to provide lubrication.
Hard Anodized vs Stainless Steel
Stainless steel although has a silver lustrous appearance, but it might not always be useful in highly abrasion environments. As the name suggests, the surface of hard anodized components is way harder than normal stainless steel. It is commonly intended to be used in applications where there are moving parts and it must withstand abrasion.
Is hard anodized cookware better than stainless steel
Hard anodized aluminum for cookware can be a material for many kitchens if we look solely on the quality and comfort. But when it comes to cost stainless steel for cookware can be a material of choice. There are pros and cons. Hard anodized cookware has better heat distribution characteristics, better non-stick behavior and more durability. Stainless steel cook ware are easy to manufacture; they are comparatively less-costly and may be more aesthetically pleasing.
Anodized Aluminum vs Stainless Steel
Choice between anodized aluminum and stainless steel depends on the end-use and budget. Anodized aluminum comes in a lot of colors and hues. It has better strength-to-weight ratio and excellent corrosion resistant properties. Contrary to this, stainless steel has a better price, brightly polished surface, ease of manufacturing and optimum corrosion resistant properties.
Which is better hard-anodized aluminum or stainless steel
Hard anodized aluminum is known for its corrosion resistance, durability, and lightweight. It is commonly used in the aerospace, automotive, and marine industries due to its high strength-to-weight ratio. Hard anodized aluminum can also be easily painted or powder coated for additional corrosion protection.
Hard anodized stainless steel is hard, easy to clean, and corrosion-resistant. Commonly used in food processing, medical equipment, and household appliances. Stainless steel can also be easily polished or brushed, Chrome finish stainless steel restores its luster.
Anodized Steel vs Stainless Steel
According to many experts, anodized steel may not be completely corrosion resistant. On the other hand, stainless steel comes in many different grades. So, it can be corrosion resistant in many environments. Some grades can even withstand marine environments. As far a mechanical properties are concerned, there might not be many differences between the two.
Anodized Stainless Steel vs. Other Finishes
| Finish | Pros | Cons | Uses |
|---|---|---|---|
| Anodized Stainless Steel | Corrosion/wear resistance, aesthetic | Costly, limited colors, maintenance | Decor, trim, jewelry, implants |
| Passivated Stainless Steel | Corrosion resistance, cost-effective, natural look | No added wear/aesthetic, not for harsh environments | Industrial, kitchenware, medical, general |
| Electropolished Stainless Steel | Corrosion resistance, smooth, clean, hygienic | Costly, not for all types, can reduce wear | Food/pharma equipment, architecture |
| PVD Coated Stainless Steel | Many colors/finishes, durable, corrosion resistant, biocompatible | Costly, thickness issue, less durable than some | Hardware, watches, jewelry, implants, tools |
| Powder Coated Stainless Steel | Many colors/finishes, corrosion resistant, affordable, hides flaws | Less durable, chips/scratches, special equipment, not for high heat | Furniture, appliances, panels, auto parts |
When to Choose Anodized Stainless Steel Parts
Anodized stainless steel may be used in specific high-tech industries, like biomedical implants manufacturing, where surface characteristics like surface roughness or anti-fouling properties may be changed to make parts bio-compatible.
Certain military standards have anodizing requirements for stainless steel. For other processes like flame anodizing, black oxide, passivation etc. have endless applications.
FAQs about Anodized Stainless Steel
How to anodize stainless steel at home?
Fill a tank with distilled water and add 2 tablespoons of NaOH per gallon. Degrease the components with acetone solution. Use copper clips and wire to connect the stainless-steel components with a 12V DC power supply. Immerse it for 20 minutes. Then take it out and rinse it with distilled water.
What are the disadvantages of anodizing stainless steel?
The process has tight controls and might be expensive.
